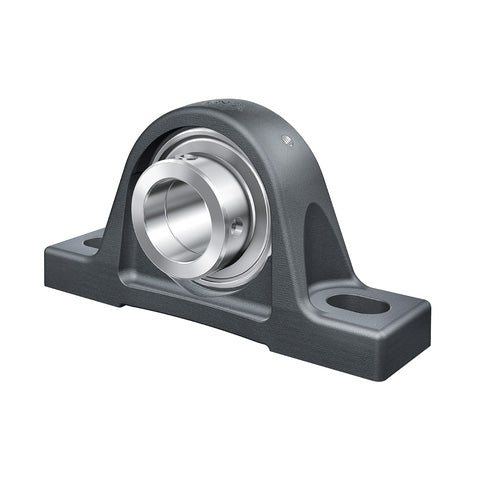

INA RASE40XLNFA125 Cast Iron Plummer Block Housing with Eccentric Collar Insert and Anti-Corrosion Protection 40mm Bore

INA RASE40XLNFA125 Cast Iron Plummer Block Housing with Eccentric Collar Insert and Anti-Corrosion Protection 40mm Bore
$109.48 ex VAT
$109.48 ex VAT
Sale Sold out

In stock

Price Break
4+ $73.34
9+ $69.22
19+ $68.39
29+ $67.57
39+ $66.74
49+ $65.92
59+ $61.80
69+ $60.98
79+ $60.15
89+ $59.33
99+ $57.68

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
INA - High Quality
Inside Diameter:
40mm
Style:
RASE
Bolt Hole Centres:
138mm
Technical
d 40mm
L 179mm
H2 99mm
A 48mm
A1 30mm
B1 56.5mm58mm
H 49.2mm
H1 19mm
J 138mm
N 14mm
N1 26mm
Q M6
S1 35.1mm
Mass 1.95 kg
Basic dynamic load rating Cr 34500 N
Basic static load rating Cor 19800 N
Designation of housing ASE/AK08
Designation of bearing GE40-XL-KRR-B-FA125
Bearing end cap, closed design (to be ordered separately) KASK08
