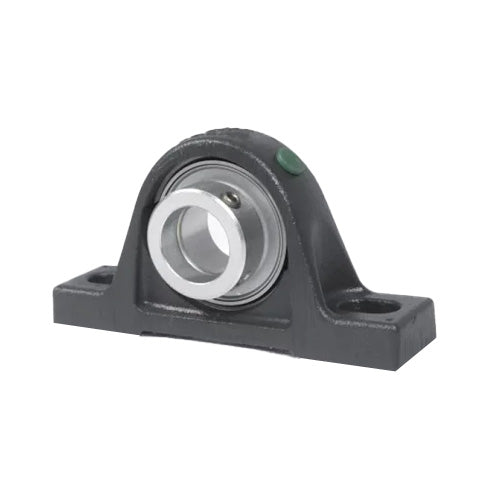

• INA RASEL20XLN Cast Iron Plummer Block Housing with Drive Slot Insert 20mm Bore
  • INA
1 2

SKU: RASEL20-XL-N-INA

INA RASEL20XLN Cast Iron Plummer Block Housing with Drive Slot Insert 20mm Bore

INA RASEL20XLN Cast Iron Plummer Block Housing with Drive Slot Insert 20mm Bore
$62.18 ex VAT
$62.18 ex VAT
Sale Sold out

In stock

Price Break
4+ $41.65
9+ $39.31
19+ $38.84
29+ $38.38
39+ $37.91
49+ $37.44
59+ $35.10
69+ $34.63
79+ $34.16
89+ $33.70
99+ $32.76

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
INA - High Quality
Inside Diameter:
20mm
Style:
RASEL
Bolt Hole Centres:
97mm
Technical
d 20mm
L 130mm
H2 64mm
A 32mm
A1 19mm
B 34.1mm
H 33.3mm
H1 14.5mm
J 97mm
N 11mm
N1 19mm
Q M6
S1 18.5mm
Mass 0.58 kg
Basic dynamic load rating Cr 13600 N
Basic static load rating Cor 6600 N
Designation of housing ASE04
Designation of bearing GLE20-XL-KRR-B
Bearing end cap, closed design (to be ordered separately) KASK04
