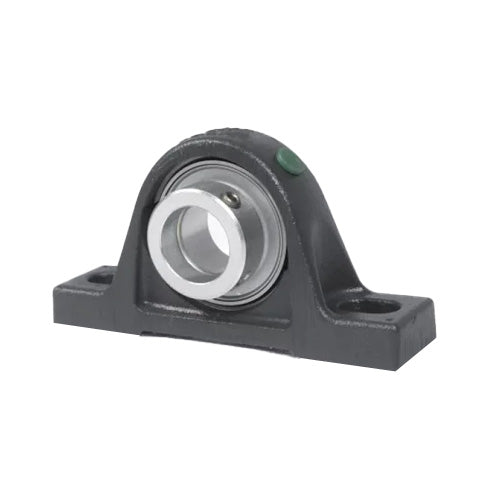

• INA RASEL25XLN Cast Iron Plummer Block Housing with Drive Slot Insert 25mm Bore
  • INA
1 2

SKU: RASEL25-XL-N-INA

INA RASEL25XLN Cast Iron Plummer Block Housing with Drive Slot Insert 25mm Bore

INA RASEL25XLN Cast Iron Plummer Block Housing with Drive Slot Insert 25mm Bore
$65.88 ex VAT
$65.88 ex VAT
Sale Sold out

In stock

Price Break
4+ $44.13
9+ $41.65
19+ $41.15
29+ $40.66
39+ $40.16
49+ $39.66
59+ $37.19
69+ $36.69
79+ $36.19
89+ $35.70
99+ $34.71

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
INA - High Quality
Inside Diameter:
25mm
Style:
RASEL
Bolt Hole Centres:
103mm
Technical
d 25mm
L 130mm
H2 70mm
A 36mm
A1 21mm
B 34.9mm
H 36.5mm
H1 14.5mm
J 103mm
N 11mm
N1 19mm
Q M6
S1 20.2mm
Mass 0.7 kg
Basic dynamic load rating Cr 14900 N
Basic static load rating Cor 7800 N
Designation of housing ASE05
Designation of bearing GLE25-XL-KRR-B
Bearing end cap, closed design (to be ordered separately) KASK05
