• INA RASEL30XLN Cast Iron Plummer Block Housing with Drive Slot Insert 30mm Bore
  • INA
1 2

SKU: RASEL30-XL-N-INA

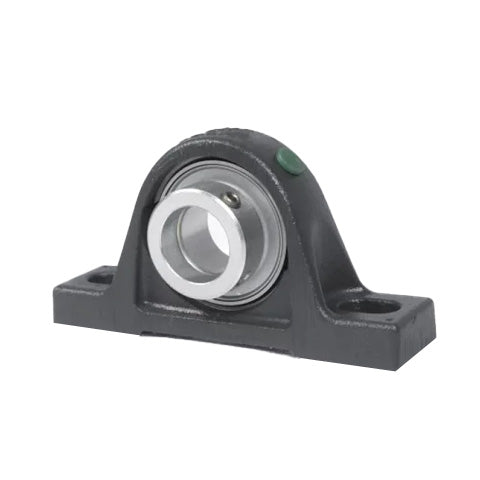

INA RASEL30XLN Cast Iron Plummer Block Housing with Drive Slot Insert 30mm Bore

INA RASEL30XLN Cast Iron Plummer Block Housing with Drive Slot Insert 30mm Bore
$78.05 ex VAT
$78.05 ex VAT
Sale Sold out

In stock

Price Break
4+ $52.28
9+ $49.34
19+ $48.75
29+ $48.17
39+ $47.58
49+ $46.99
59+ $44.06
69+ $43.47
79+ $42.88
89+ $42.29
99+ $41.12

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
INA - High Quality
Inside Diameter:
30mm
Style:
RASEL
Bolt Hole Centres:
118mm
Technical
d 30mm
L 158mm
H2 82mm
A 40mm
A1 25mm
B 36.5mm
H 42.9mm
H1 17mm
J 118mm
N 14mm
N1 22mm
Q M6
S1 22mm
Mass 1.1 kg
Basic dynamic load rating Cr 20700 N
Basic static load rating Cor 11300 N
Designation of housing ASE06
Designation of bearing GLE30-XL-KRR-B
Bearing end cap, closed design (to be ordered separately) KASK06
