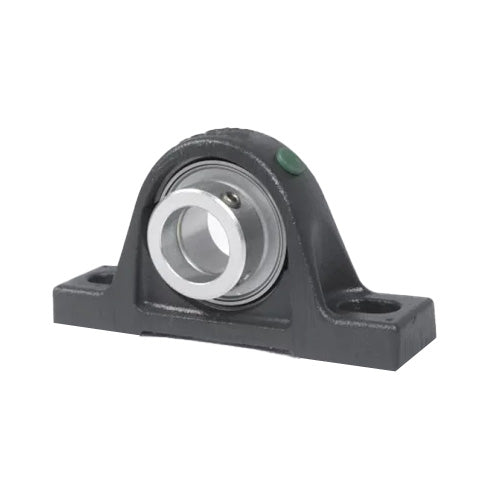

• INA RASEL45XL Cast Iron Plummer Block Housing with Drive Slot Insert 45mm Bore
  • INA
1 2

SKU: RASEL45-XL-INA

INA RASEL45XL Cast Iron Plummer Block Housing with Drive Slot Insert 45mm Bore

INA RASEL45XL Cast Iron Plummer Block Housing with Drive Slot Insert 45mm Bore
$121.54 ex VAT
$121.54 ex VAT
Sale Sold out

In stock

Price Break
4+ $81.41
9+ $76.83
19+ $75.92
29+ $75.01
39+ $74.09
49+ $73.18
59+ $68.60
69+ $67.69
79+ $66.77
89+ $65.86
99+ $64.03

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
INA Plummer Block Housing Units: Supplied with a fully sealed bearing insert fitted in the housing with a drive slot. This cast iron housing is a single-piece unit with a high load carrying capacity and features a lubrication groove to facilitate relubrication of the bearing insert. This plummer block housing has a long base and is screw mounted to the adjacent construction by means of slots. Due to the spherical outside surface of the bearing outer ring and the concave housing bore, the unit can compensate for static angular misalignment of the shaft of up to 5 degrees if relubrication is not carried out and 2.5 degrees if relubrication is carried out.
Benefits: High load carrying capacity, re-lubricatable, drive slot insert, tolerates misalignment of the shaft.
Brand / Quality:
INA - High Quality
Inside Diameter:
45mm
Style:
RASEL
Bolt Hole Centres:
150mm
Technical
d 45mm
L 192mm
H2 107mm
A 48mm
A1 32mm
B 42.9mm
H 54mm
H1 21.5mm
J 150mm
N 14mm
N1 29mm
Q M6
S1 25.5mm
Mass 2.1 kg
Basic dynamic load rating Cr 34500 N
Basic static load rating Cor 20400 N
Designation of housing ASE09
Designation of bearing GLE45-XL-KRR-B
