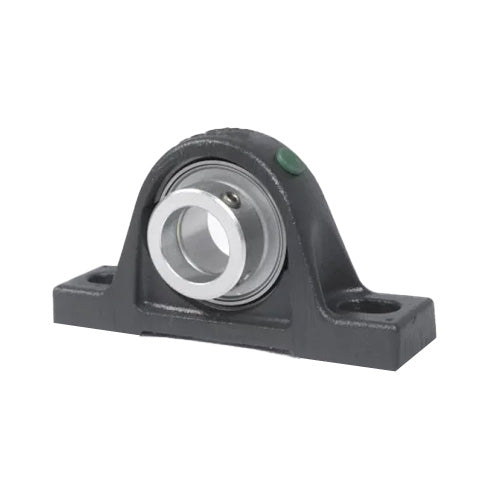

• INA RASEL50XLN Cast Iron Plummer Block Housing with Drive Slot Insert 50mm Bore
  • INA
1 2

SKU: RASEL50-XL-N-INA

INA RASEL50XLN Cast Iron Plummer Block Housing with Drive Slot Insert 50mm Bore

INA RASEL50XLN Cast Iron Plummer Block Housing with Drive Slot Insert 50mm Bore
$139.10 ex VAT
$139.10 ex VAT
Sale Sold out

In stock

Price Break
4+ $93.17
9+ $87.94
19+ $86.89
29+ $85.85
39+ $84.80
49+ $83.75
59+ $78.52
69+ $77.47
79+ $76.42
89+ $75.38
99+ $73.28

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
INA - High Quality
Inside Diameter:
50mm
Style:
RASEL
Bolt Hole Centres:
158mm
Technical
d 50mm
L 200mm
H2 115mm
A 54mm
A1 34mm
B 49.2mm
H 57.2mm
H1 21.5mm
J 158mm
N 18mm
N1 23mm
Q M6
S1 30.2mm
Mass 2.6 kg
Basic dynamic load rating Cr 37500 N
Basic static load rating Cor 23200 N
Designation of housing ASE10
Designation of bearing GLE50-XL-KRR-B
Bearing end cap, closed design (to be ordered separately) KASK10
