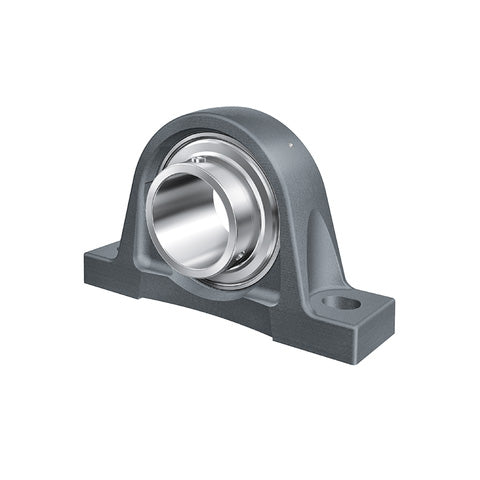

• INA RASEY15XL Cast Iron Plummer Block Housing with Grub Screw Insert 15mm Bore
  • INA
1 2

SKU: RASEY15-XL-INA

INA RASEY15XL Cast Iron Plummer Block Housing with Grub Screw Insert 15mm Bore

INA RASEY15XL Cast Iron Plummer Block Housing with Grub Screw Insert 15mm Bore
$39.30 ex VAT
$39.30 ex VAT
Sale Sold out

In stock

Price Break
4+ $26.33
9+ $24.85
19+ $24.55
29+ $24.26
39+ $23.96
49+ $23.66
59+ $22.19
69+ $21.89
79+ $21.59
89+ $21.30
99+ $20.71

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
INA Plummer Block Housing Units: Supplied with a fully sealed bearing insert fitted in the housing with grub screws in the inner ring. This cast iron housing is a single-piece unit with a high load carrying capacity and features a lubrication groove to facilitate relubrication of the bearing insert. This plummer block housing has a long base and is screw mounted to the adjacent construction by means of slots. Due to the spherical outside surface of the bearing outer ring and the concave housing bore, the unit can compensate for static angular misalignment of the shaft of up to 5 degrees if relubrication is not carried out and 2.5 degrees if relubrication is carried out.
Benefits: High load carrying capacity, re-lubricatable, grub screw fixing, tolerates misalignment of the shaft.
Brand / Quality:
INA - High Quality
Inside Diameter:
15mm
Style:
RASEY
Bolt Hole Centres:
95mm
Technical
d 15mm
L 125mm
H2 57mm
A 30mm
A1 18mm
B 27.4mm
H 30.2mm
H1 10mm
J 95mm
N 11mm
N1 19mm
Q M6
S1 15.9mm
Mass 0.45 kg
Basic dynamic load rating Cr 10100 N
Basic static load rating Cor 4750 N
Designation of housing ASE03
Designation of bearing GYE15-XL-KRR-B
