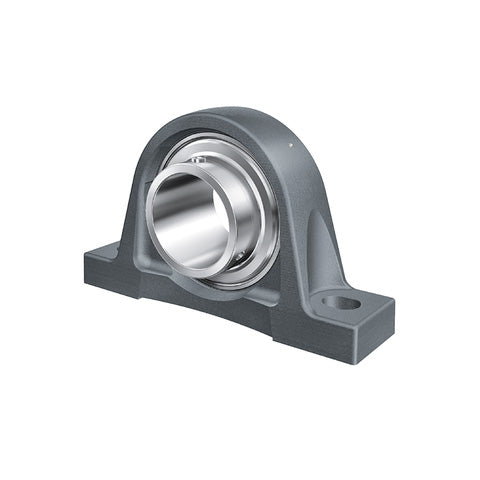

• INA RASEY20XLN Cast Iron Plummer Block Housing with Grub Screw Insert 20mm Bore
  • INA
1 2

SKU: RASEY20-XL-N-INA

INA RASEY20XLN Cast Iron Plummer Block Housing with Grub Screw Insert 20mm Bore

INA RASEY20XLN Cast Iron Plummer Block Housing with Grub Screw Insert 20mm Bore
$39.87 ex VAT
$39.87 ex VAT
Sale Sold out

In stock

Price Break
4+ $26.71
9+ $25.21
19+ $24.91
29+ $24.61
39+ $24.31
49+ $24.01
59+ $22.51
69+ $22.21
79+ $21.91
89+ $21.61
99+ $21.01

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
INA - High Quality
Inside Diameter:
20mm
Style:
RASEY
Bolt Hole Centres:
97mm
Technical
d 20mm
L 130mm
H2 64mm
A 32mm
A1 19mm
B 31mm
H 33.3mm
H1 14.5mm
J 97mm
N 11mm
N1 19mm
Q M6
S1 18.3mm
Mass 0.58 kg
Basic dynamic load rating Cr 13600 N
Basic static load rating Cor 6600 N
Designation of housing ASE04
Designation of bearing GYE20-XL-KRR-B
Bearing end cap, closed design (to be ordered separately) KASK04
Reviews
