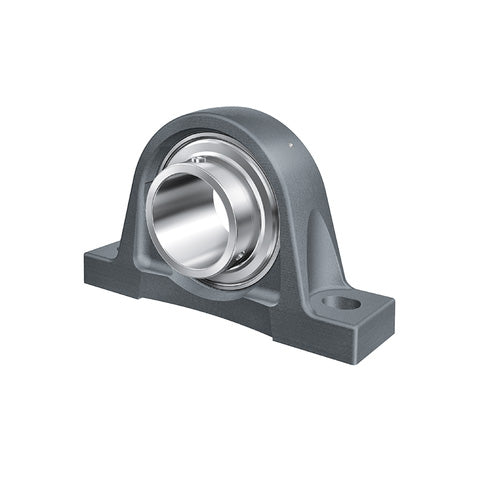

• INA RASEY25XLN Cast Iron Plummer Block Housing with Grub Screw Insert 25mm Bore
  • INA
1 2

SKU: RASEY25-XL-N-INA

INA RASEY25XLN Cast Iron Plummer Block Housing with Grub Screw Insert 25mm Bore

INA RASEY25XLN Cast Iron Plummer Block Housing with Grub Screw Insert 25mm Bore
$44.70 ex VAT
$44.70 ex VAT
Sale Sold out

In stock

Price Break
4+ $29.94
9+ $28.26
19+ $27.92
29+ $27.58
39+ $27.25
49+ $26.91
59+ $25.23
69+ $24.89
79+ $24.56
89+ $24.22
99+ $23.55

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
INA Plummer Block Housing Units: Supplied with a fully sealed bearing insert fitted in the housing with grub screws in the inner ring. This cast iron housing is a single-piece unit with a high load carrying capacity and features a lubrication groove to facilitate relubrication of the bearing insert. This plummer block housing has a long base and is screw mounted to the adjacent construction by means of slots. Due to the spherical outside surface of the bearing outer ring and the concave housing bore, the unit can compensate for static angular misalignment of the shaft of up to 5 degrees if relubrication is not carried out and 2.5 degrees if relubrication is carried out.
Benefits: High load carrying capacity, re-lubricatable, grub screw fixing, tolerates misalignment of the shaft.
Brand / Quality:
INA - High Quality
Inside Diameter:
25mm
Style:
RASEY
Bolt Hole Centres:
103mm
Technical
d 25mm
L 130mm
H2 70mm
A 36mm
A1 21mm
B 34.1mm
H 36.5mm
H1 14.5mm
J 103mm
N 11mm
N1 19mm
Q M6
S1 19.8mm
Mass 0.7 kg
Basic dynamic load rating Cr 14900 N
Basic static load rating Cor 7800 N
Designation of housing ASE05
Designation of bearing GYE25-XL-KRR-B
Bearing end cap, closed design (to be ordered separately) KASK05
