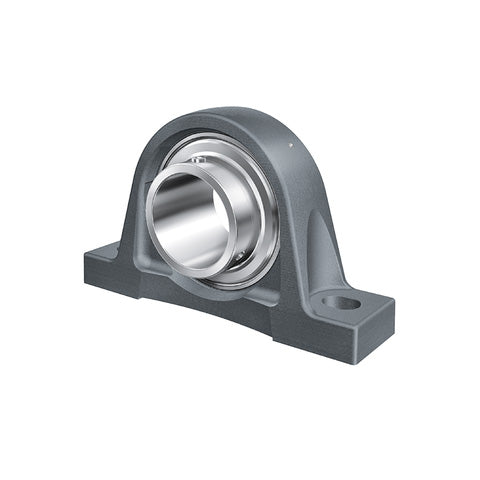

• INA RASEY30XLN Cast Iron Plummer Block Housing with Grub Screw Insert 30mm Bore
  • INA
1 2

SKU: RASEY30-XL-N-INA

INA RASEY30XLN Cast Iron Plummer Block Housing with Grub Screw Insert 30mm Bore

INA RASEY30XLN Cast Iron Plummer Block Housing with Grub Screw Insert 30mm Bore
$53.83 ex VAT
$53.83 ex VAT
Sale Sold out

In stock

Price Break
4+ $36.05
9+ $34.03
19+ $33.62
29+ $33.22
39+ $32.81
49+ $32.41
59+ $30.38
69+ $29.98
79+ $29.57
89+ $29.17
99+ $28.36

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
INA - High Quality
Inside Diameter:
30mm
Style:
RASEY
Bolt Hole Centres:
118mm
Technical
d 30mm
L 158mm
H2 82mm
A 40mm
A1 25mm
B 38.1mm
H 42.9mm
H1 17mm
J 118mm
N 14mm
N1 22mm
Q M6
S1 22.2mm
Mass 1.13 kg
Basic dynamic load rating Cr 20700 N
Basic static load rating Cor 11300 N
Designation of housing ASE06
Designation of bearing GYE30-XL-KRR-B
Bearing end cap, closed design (to be ordered separately) KASK06
