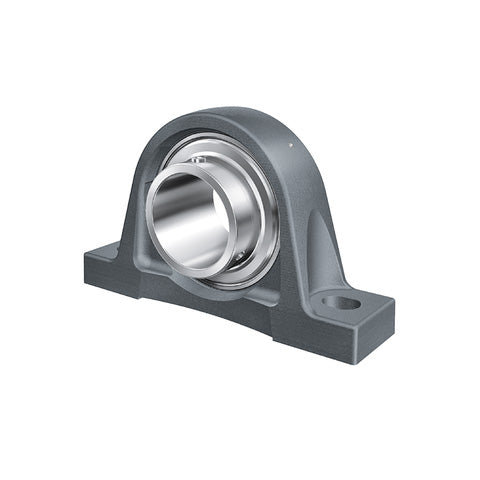

• INA RASEY35XLN Cast Iron Plummer Block Housing with Grub Screw Insert 35mm Bore
  • INA
1 2

SKU: RASEY35-XL-N-INA

INA RASEY35XLN Cast Iron Plummer Block Housing with Grub Screw Insert 35mm Bore

INA RASEY35XLN Cast Iron Plummer Block Housing with Grub Screw Insert 35mm Bore
$62.90 ex VAT
$62.90 ex VAT
Sale Sold out

In stock

Price Break
4+ $42.13
9+ $39.77
19+ $39.29
29+ $38.82
39+ $38.35
49+ $37.87
59+ $35.51
69+ $35.03
79+ $34.56
89+ $34.08
99+ $33.14

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
INA - High Quality
Inside Diameter:
35mm
Style:
RASEY
Bolt Hole Centres:
126mm
Technical
d 35mm
L 163mm
H2 93mm
A 45mm
A1 27mm
B 42.9mm
H 47.6mm
H1 19mm
J 126mm
N 14mm
N1 21mm
Q M6
S1 25.4mm
Mass 1.55 kg
Basic dynamic load rating Cr 27500 N
Basic static load rating Cor 15300 N
Designation of housing ASE07
Designation of bearing GYE35-XL-KRR-B
Bearing end cap, closed design (to be ordered separately) KASK07
