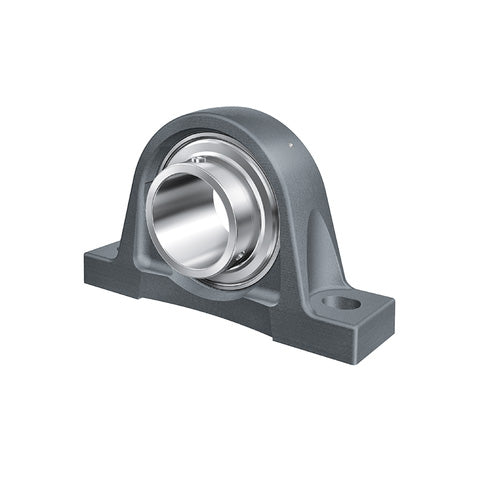

• INA RASEY50XLN Cast Iron Plummer Block Housing with Grub Screw Insert 50mm Bore
  • INA
1 2

SKU: RASEY50-XL-N-INA

INA RASEY50XLN Cast Iron Plummer Block Housing with Grub Screw Insert 50mm Bore

INA RASEY50XLN Cast Iron Plummer Block Housing with Grub Screw Insert 50mm Bore
$96.32 ex VAT
$96.32 ex VAT
Sale Sold out

In stock

Price Break
4+ $64.52
9+ $60.89
19+ $60.17
29+ $59.44
39+ $58.72
49+ $57.99
59+ $54.37
69+ $53.64
79+ $52.92
89+ $52.19
99+ $50.74

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
INA - High Quality
Inside Diameter:
50mm
Style:
RASEY
Bolt Hole Centres:
158mm
Technical
d 50mm
L 200mm
H2 115mm
A 54mm
A1 34mm
B 51.6mm
H 57.2mm
H1 21.5mm
J 158mm
N 18mm
N1 23mm
Q M6
S1 32.6mm
Mass 2.6 kg
Basic dynamic load rating Cr 37500 N
Basic static load rating Cor 23200 N
Designation of housing ASE10
Designation of bearing GYE50-XL-KRR-B
Bearing end cap, closed design (to be ordered separately) KASK10
