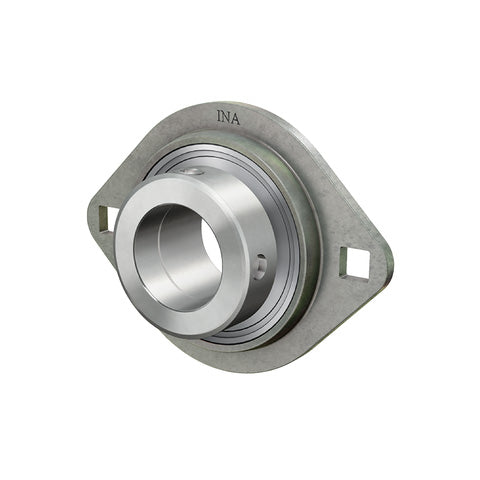

• INA RAT40XL Two Bolt Sheet Steel Oval Housing with Eccentric Collar Insert 40mm Bore
  • INA
1 2

SKU: RAT40-XL-INA

INA RAT40XL Two Bolt Sheet Steel Oval Housing with Eccentric Collar Insert 40mm Bore

INA RAT40XL Two Bolt Sheet Steel Oval Housing with Eccentric Collar Insert 40mm Bore
$56.52 ex VAT
$56.52 ex VAT
Sale Sold out

In stock

Price Break
4+ $37.86
9+ $35.73
19+ $35.31
29+ $34.88
39+ $34.46
49+ $34.03
59+ $31.91
69+ $31.48
79+ $31.05
89+ $30.63
99+ $29.78

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
INA 2 Bolt Oval Housing Units: Supplied with a fully sealed bearing insert fitted in the housing with an eccentric locking collar. This sheet steel housing is a two-piece unit with a moderate load carrying capacity. Due to the spherical outside surface of the bearing outer ring and the concave housing bore, housing units can compensate for static angular misalignment of the shaft. The housings are screw mounted on the adjacent construction.
Benefits: Suitable for a lightweight construction, eccentric collar, tolerates misalignment of the shaft.
Brand / Quality:
INA - High Quality
Inside Diameter:
40mm
Style:
RAT
Bolt Hole Centres:
119mm
Technical
d 40mm
H 151mm
U 36.2mm
A 11.5mm
B1 43.8mm
d3 max 58mm
J 119mm
L 100mm
N 13.5mm
S 3.5mm
V 90mm
Mass 0.98 kg
Load carrying capacity of housing Cor G 7000 N
Basic dynamic load rating Cr 34500 N
Basic static load rating Cor 19800 N
Designation of housing FLAN80-MST (2 X)
Designation of bearing RAE40-XL-NPP-B
