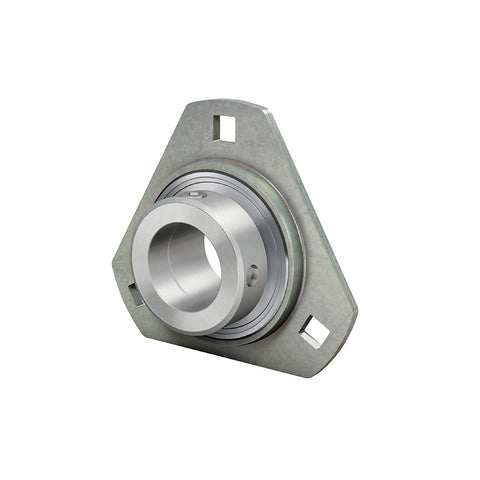

INA RATR20XL Three Bolt Sheet Steel Triangle Housing with Eccentric Collar Insert 20mm Bore

Name: INA RATR20XL Three Bolt Sheet Steel Triangle Housing with Eccentric Collar Insert 20mm Bore
Brand: INA
SKU: RATR20-XL-INA
Price: 29.60 USD
Availability: InStock

$29.60 ex VAT

Sale Sold out

In stock

Price Break

4+ $19.83

9+ $18.72

19+ $18.49

29+ $18.27

39+ $18.05

49+ $17.82

59+ $16.71

69+ $16.49

79+ $16.26

89+ $16.04

99+ $15.60

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

INA 3 Bolt Triangular Housing Units: Supplied with a fully sealed bearing insert fitted in the housing with an eccentric locking collar. This sheet steel housing is a two-piece unit with a moderate load carrying capacity. Due to the spherical outside surface of the bearing outer ring and the concave housing bore, housing units can compensate for static angular misalignment of the shaft. The housings are screw mounted on the adjacent construction.
Benefits: Suitable for a lightweight construction, eccentric collar, tolerates misalignment of the shaft.

Brand / Quality:: INA - High Quality
Inside Diameter:: 20mm
Style:: RATR
Pitch Circle Diameter:: 71.5mm

Technical

d	20mm
H	90.5mm
B1	31mm
A	8mm
d3 max	33mm
H1	33.3mm
H2	76.2mm
J	71.5mm
N	8.7mm
S1	2mm
U	25.5mm
V	55mm
Mass	0.28 kg
Load carrying capacity of housing Cor G	3200 N
Basic dynamic load rating Cr	13600 N
Basic static load rating Cor	6600 N
Designation of housing	FLAN47-MSTR (2 X)
Designation of bearing	RAE20-XL-NPP-B
