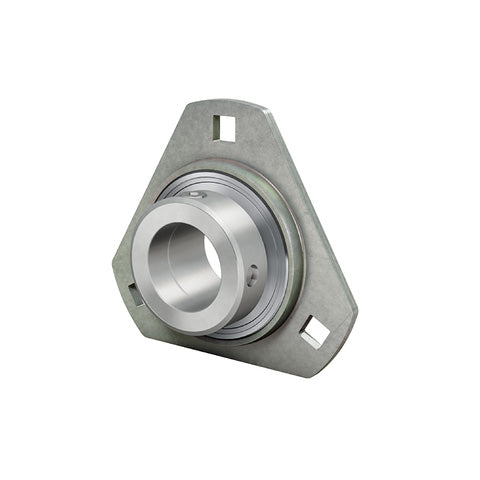

• INA RATR30XL Three Bolt Sheet Steel Triangle Housing with Eccentric Collar Insert 30mm Bore
  • INA
1 2

SKU: RATR30-XL-INA

INA RATR30XL Three Bolt Sheet Steel Triangle Housing with Eccentric Collar Insert 30mm Bore

INA RATR30XL Three Bolt Sheet Steel Triangle Housing with Eccentric Collar Insert 30mm Bore
$37.83 ex VAT
$37.83 ex VAT
Sale Sold out

In stock

Price Break
4+ $25.34
9+ $23.91
19+ $23.63
29+ $23.35
39+ $23.06
49+ $22.78
59+ $21.35
69+ $21.07
79+ $20.78
89+ $20.50
99+ $19.93

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
INA - High Quality
Inside Diameter:
30mm
Style:
RATR
Pitch Circle Diameter:
90.5mm
Technical
d 30mm
H 112.7mm
B1 35.8mm
A 8.7mm
d3 max 44mm
H1 38.1mm
H2 93mm
J 90.5mm
N 10.5mm
S1 2.5mm
U 29.2mm
V 71mm
Mass 0.43 kg
Load carrying capacity of housing Cor G 5000 N
Basic dynamic load rating Cr 20700 N
Basic static load rating Cor 11300 N
Designation of housing FLAN62-MSTR (2 X)
Designation of bearing RAE30-XL-NPP-B
