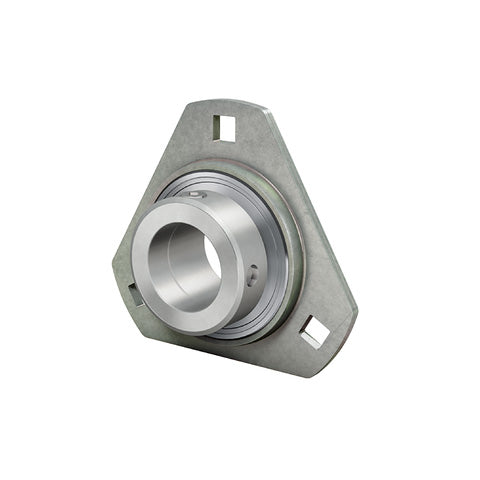

• INA RATR35XL Three Bolt Sheet Steel Triangle Housing with Eccentric Collar Insert 35mm Bore
  • INA
1 2

SKU: RATR35-XL-INA

INA RATR35XL Three Bolt Sheet Steel Triangle Housing with Eccentric Collar Insert 35mm Bore

INA RATR35XL Three Bolt Sheet Steel Triangle Housing with Eccentric Collar Insert 35mm Bore
$46.56 ex VAT
$46.56 ex VAT
Sale Sold out

In stock

Price Break
4+ $31.19
9+ $29.43
19+ $29.08
29+ $28.73
39+ $28.38
49+ $28.03
59+ $26.28
69+ $25.93
79+ $25.58
89+ $25.23
99+ $24.53

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
INA 3 Bolt Triangular Housing Units: Supplied with a fully sealed bearing insert fitted in the housing with an eccentric locking collar. This sheet steel housing is a two-piece unit with a moderate load carrying capacity. Due to the spherical outside surface of the bearing outer ring and the concave housing bore, housing units can compensate for static angular misalignment of the shaft. The housings are screw mounted on the adjacent construction.
Benefits: Suitable for a lightweight construction, eccentric collar, tolerates misalignment of the shaft.
Brand / Quality:
INA - High Quality
Inside Diameter:
35mm
Style:
RATR
Pitch Circle Diameter:
100mm
Technical
d 35mm
H 122mm
B1 39mm
A 9.5mm
d3 max 55mm
H1 44.5mm
H2 105.6mm
J 100mm
N 10.5mm
S1 2.5mm
U 31.9mm
V 81mm
Mass 0.56 kg
Load carrying capacity of housing Cor G 6400 N
Basic dynamic load rating Cr 27500 N
Basic static load rating Cor 15300 N
Designation of housing FLAN72-MSTR (2 X)
Designation of bearing RAE35-XL-NPP-B
