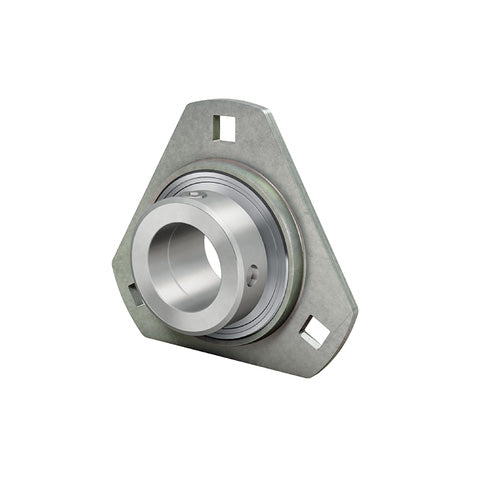

• INA RATRY30XL Three Bolt Sheet Steel Triangle Housing with Grub Screw Insert 30mm Bore
  • INA
1 2

SKU: RATRY30-XL-INA

INA RATRY30XL Three Bolt Sheet Steel Triangle Housing with Grub Screw Insert 30mm Bore

INA RATRY30XL Three Bolt Sheet Steel Triangle Housing with Grub Screw Insert 30mm Bore
$33.91 ex VAT
$33.91 ex VAT
Sale Sold out

In stock

Price Break
4+ $22.71
9+ $21.44
19+ $21.18
29+ $20.93
39+ $20.67
49+ $20.42
59+ $19.14
69+ $18.88
79+ $18.63
89+ $18.37
99+ $17.86

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
INA - High Quality
Inside Diameter:
30mm
Style:
RATRY
Pitch Circle Diameter:
90.5mm
Technical
d 30mm
H 112.7mm
B 30mm
A 8.7mm
H1 38.1mm
H2 93mm
J 90.5mm
N 10.5mm
S1 2.5mm
U 23.5mm
V 71mm
Mass 0.41 kg
Load carrying capacity of housing Cor G 5000 N
Basic dynamic load rating Cr 20700 N
Basic static load rating Cor 11300 N
Designation of housing FLAN62-MSTR (2 X)
Designation of bearing AY30-XL-NPP-B
