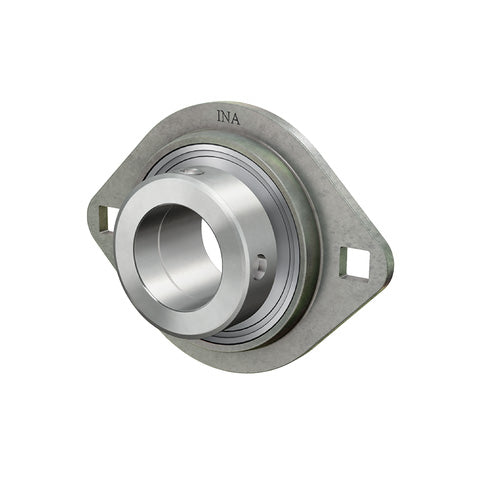

• INA RATY35XL Two Bolt Sheet Steel Oval Housing with Grub Screw Insert 35mm Bore
  • INA
1 2

SKU: RATY35-XL-INA

INA RATY35XL Two Bolt Sheet Steel Oval Housing with Grub Screw Insert 35mm Bore

INA RATY35XL Two Bolt Sheet Steel Oval Housing with Grub Screw Insert 35mm Bore
$41.32 ex VAT
$41.32 ex VAT
Sale Sold out

In stock

Price Break
4+ $27.68
9+ $26.12
19+ $25.81
29+ $25.50
39+ $25.19
49+ $24.88
59+ $23.33
69+ $23.01
79+ $22.70
89+ $22.39
99+ $21.77

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
INA 2 Bolt Oval Housing Units: Supplied with a fully sealed bearing insert fitted in the housing with grub screws in the inner ring. This sheet steel housing is a two-piece unit with a moderate load carrying capacity. Due to the spherical outside surface of the bearing outer ring and the concave housing bore, housing units can compensate for static angular misalignment of the shaft. The housings are screw mounted on the adjacent construction.
Benefits: Suitable for a lightweight construction, grub screw fixing, tolerates misalignment of the shaft.
Brand / Quality:
INA - High Quality
Inside Diameter:
35mm
Style:
RATY
Bolt Hole Centres:
100mm
Technical
d 35mm
H 123mm
U 28mm
A 10.5mm
B 35mm
J 100mm
L 93.7mm
N 10.5mm
S 2.5mm
V 81mm
Mass 0.56 kg
Load carrying capacity of housing Cor G 6300 N
Basic dynamic load rating Cr 27500 N
Basic static load rating Cor 15300 N
Designation of housing FLAN72-MST (2 X)
Designation of bearing GAY35-XL-NPP-B
