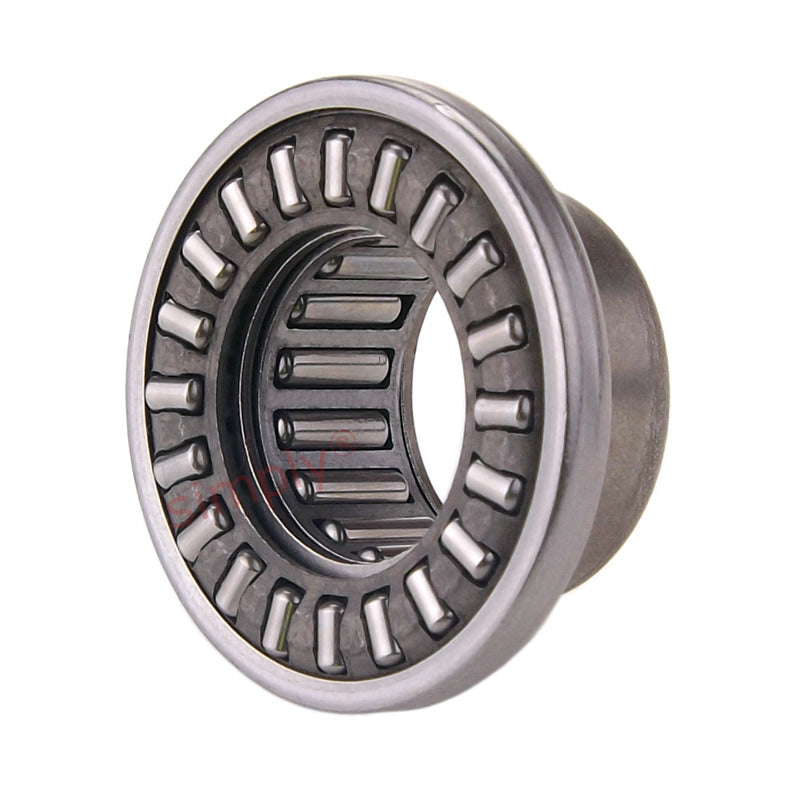

• Major Brand RAX 415 Needle Combined Bearing with Needle Thrust Cage 15x24x19mm Allow 2-3 Days
1 1

SKU: RAX415-MB

Major Brand RAX 415 Needle Combined Bearing with Needle Thrust Cage 15x24x19mm Allow 2-3 Days

Major Brand RAX 415 Needle Combined Bearing with Needle Thrust Cage 15x24x19mm Allow 2-3 Days
$135.22 ex VAT
$135.22 ex VAT
Sale Sold out

In stock

Price Break
10+ $90.58
19+ $85.49
29+ $84.47
39+ $83.45
49+ $82.43
74+ $81.42
99+ $76.33
199+ $75.31
249+ $74.29
499+ $73.27
999+ $71.24

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

Nadella Combined Needle Bearings: Combined needle bearings comprise a thrust plate and an outer ring machined separately and joined by a strong metal insert. This arrangement prevents localised stresses and weakness in the area between the two components, thus eliminating the risk of damage during mounting.
Benefits: Cost effective
Brand / Quality:
Major Brand - High Quality
Inside Diameter:
15mm
Outside Diameter:
19mm
Width:
24mm

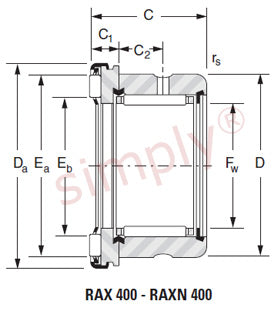

Technical
Fw 15mm
C 19mm
D 24mm
Da 28mm
Eb 17mm
Ea 24.6mm
C1 5mm
C2 6mm
rs min 0.35mm
Radial dynamic load 9.66 kN
Radial static load 12.6 kN
Axial dynamic load 7.6 kN
Axial static load 20.8 kN
Speed rating 11500 rpm
Inner ring JR 12x15x16 kN
Weight 0.034 kg
