SKU: RAX445-MB

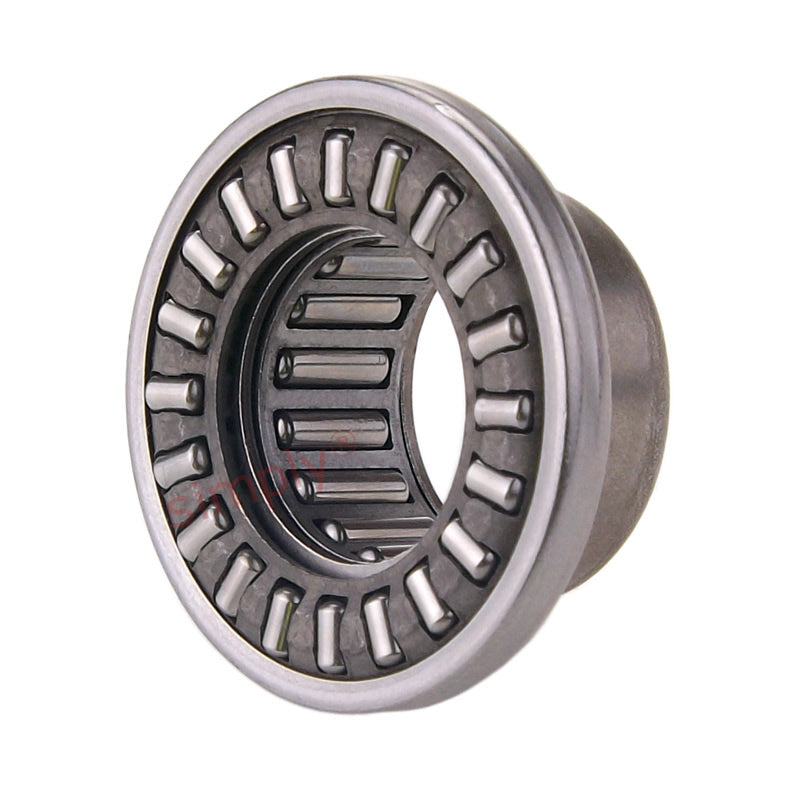

Major Brand RAX 445 Needle Combined Bearing With Needle Thrust Cage 45x58x24mm
Major Brand RAX 445 Needle Combined Bearing With Needle Thrust Cage 45x58x24mm
Regular price
$340.36
ex VAT
Regular price
Sale price
$340.36
ex VAT
In stock
Price Break
10+
$227.98
19+
$215.17
29+
$212.61
39+
$210.05
49+
$207.49
74+
$204.93
99+
$192.12
199+
$189.56
249+
$187.00
499+
$184.43
999+
$179.31
Quantity
Couldn't load pickup availability
Share this product
Description
Description
Nadella Combined Needle Bearings: Combined needle bearings comprise a thrust plate and an outer ring machined separately and joined by a strong metal insert. This arrangement prevents localised stresses and weakness in the area between the two components, thus eliminating the risk of damage during mounting. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 24mm
- Width:
- 58mm
Technical
Technical
| Fw | 45mm |
|---|---|
| C | 24mm |
| D | 58mm |
| Da | 65mm |
| Eb | 48mm |
| Ea | 59.9mm |
| C1 | 6mm |
| C2 | 9mm |
| rs min | 0.85mm |
| Radial dynamic load | 24.9 kN |
| Radial static load | 51.8 kN |
| Axial dynamic load | 21.8 kN |
| Axial static load | 109 kN |
| Speed rating | 4500 rpm |
| Inner ring | JR 40x45x20 kN |
| Weight | 0.179 kg |
