• Major Brand RAX 705 Open Needle Thrust Bearing 5x9x11mm Allow 2-3 Days
1 1

SKU: RAX705-MB

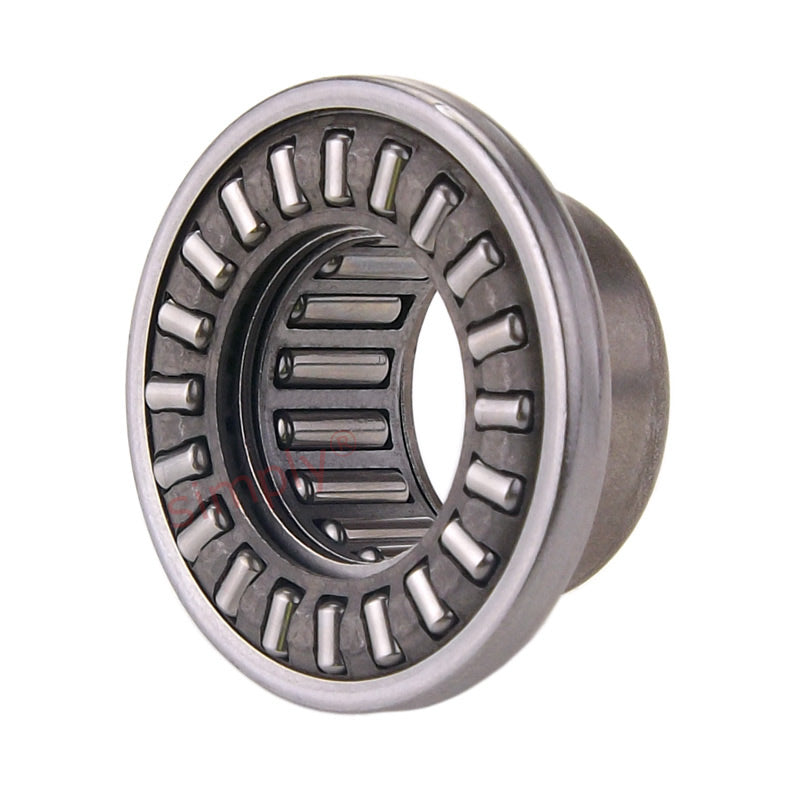

Major Brand RAX 705 Open Needle Thrust Bearing 5x9x11mm Allow 2-3 Days

Major Brand RAX 705 Open Needle Thrust Bearing 5x9x11mm Allow 2-3 Days
$66.26 ex VAT
$66.26 ex VAT
Sale Sold out

In stock

Price Break
10+ $44.38
19+ $41.89
29+ $41.39
39+ $40.89
49+ $40.39
74+ $39.89
99+ $37.40
199+ $36.90
249+ $36.40
499+ $35.90
999+ $34.91

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

Nadella Combined Needle Roller Bearings : Combined bearings type RAX possess a one piece outer ring formed from thin sheet steel accurately controlled and hardened by suitable heat treatment. The shape of this outer ring prevents weakness in the area between the axial component and the radial component, even after the latter has been tightly fitted into a housing.
Benefits: Cost effective, easy to use and can be fitted rapidly
Brand / Quality:
Major Brand - High Quality
Inside Diameter:
5mm
Outside Diameter:
9mm
Width:
11mm

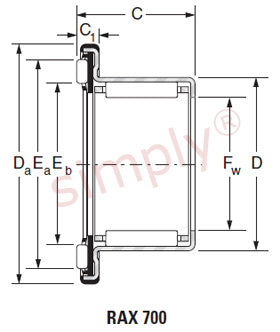

Technical
Fw 5mm
D 9mm
C 11mm
Da 15.5mm
Eb 7.2mm
Ea 11.2mm
C1 3.3mm
L Radial dynamic load
2.15 Radial static load
1.95 kN Axial dynamic load
3.15 kN Axial static load
6.35 kN Limit loads radial
0.74 kN Limit loads axial
3.5 kN Speed rating
25000 rpm Housing
9mm GO plug-gauges
5.009mm NO-GO plug-gauges
5.036mm Inner ring
Weight 0.005 kg
