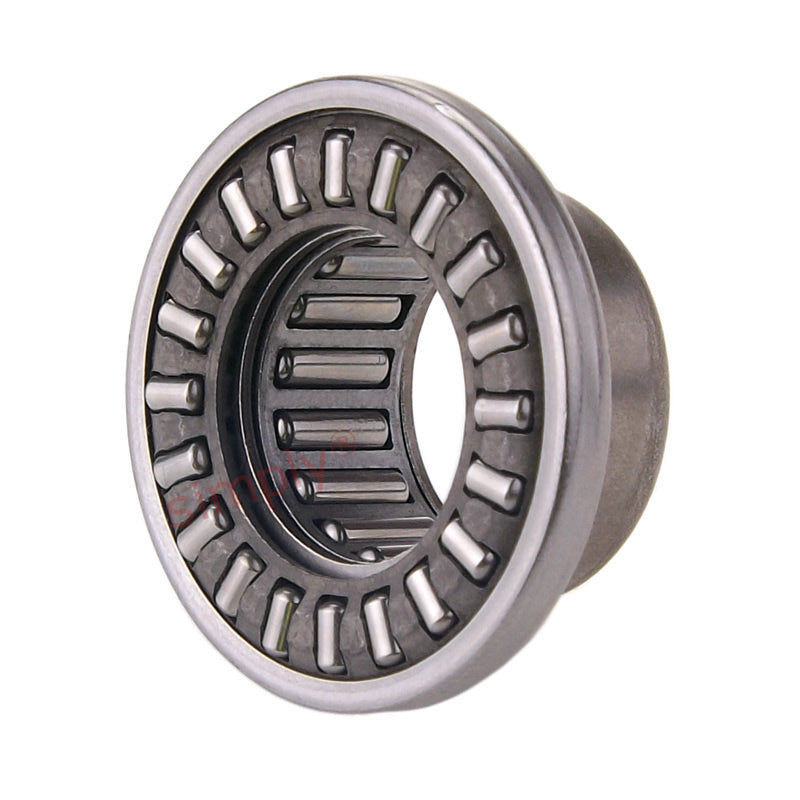

• Major Brand RAXN 520 Needle Combined Bearing with Needle Thrust Cage 20x30x26mm Allow 2-3 Days
1 1

SKU: RAXN520-MB

Major Brand RAXN 520 Needle Combined Bearing with Needle Thrust Cage 20x30x26mm Allow 2-3 Days

Major Brand RAXN 520 Needle Combined Bearing with Needle Thrust Cage 20x30x26mm Allow 2-3 Days
$505.66 ex VAT
$505.66 ex VAT
Sale Sold out

In stock

Price Break
10+ $338.71
19+ $319.68
29+ $315.88
39+ $312.07
49+ $308.27
74+ $304.46
99+ $285.43
199+ $281.63
249+ $277.82
499+ $274.01
999+ $266.40

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

Nadella Combined Needle Bearings: Combined needle bearings comprise a thrust plate and an outer ring machined separately and joined by a strong metal insert. This arrangement prevents localised stresses and weakness in the area between the two components, thus eliminating the risk of damage during mounting.
Benefits: Cost effective
Brand / Quality:
Major Brand - High Quality
Inside Diameter:
20mm
Outside Diameter:
26mm
Width:
30mm
Technical
Fw 20mm
C 26mm
D 30mm
Da 35mm
Eb 22mm
Ea 31.6mm
C1 8mm
C2 9mm
rs min 0.85mm
Radial dynamic load 14.8 kN
Radial static load 23.7 kN
Axial dynamic load 22 kN
Axial static load 54 kN
Speed rating 9000 rpm
Inner ring JR 17x20x20 kN
Weight 0.07 kg
