Major Brand RAXPZ 435 Combined Bearing with Incorporated Thrust Plate 35x47x27mm Allow 2-3 Days
Major Brand RAXPZ 435 Combined Bearing with Incorporated Thrust Plate 35x47x27mm Allow 2-3 Days
Major Brand RAXPZ 435 Combined Bearing with Incorporated Thrust Plate 35x47x27mm Allow 2-3 Days
Major Brand RAXPZ 435 Combined Bearing with Incorporated Thrust Plate 35x47x27mm Allow 2-3 Days

SKU: RAXPZ435-MB

Major Brand RAXPZ 435 Combined Bearing with Incorporated Thrust Plate 35x47x27mm Allow 2-3 Days

$320.99 ex VAT
$320.99
ex VAT
Not in stock

Quantity Price Breaks

10 $285.68
19 $269.63
29 $266.42
39 $263.21
49 $260.00
74 $256.79
99 $240.74
199 $237.53
249 $234.32
499 $231.11
999 $224.69
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
Major Brand RAXPZ 435 Combined Bearing with Incorporated Thrust Plate 35x47x27mm Allow 2-3 Days
Major Brand RAXPZ 435 Combined Bearing with Incorporated Thrust Plate 35x47x27mm Allow 2-3 Days
SKU: RAXPZ435-MB

Major Brand RAXPZ 435 Combined Bearing with Incorporated Thrust Plate 35x47x27mm Allow 2-3 Days

$320.99 ex VAT
$320.99
ex VAT

Description

Nadella Combined Needle Bearings with Incorporated Thrust Plate: These bearings have an incorporated thrust plate retained by a steel ring set on the thrust plate. They are better protected against the introduction of dust and metal particles and are therefore recommended for spindles of drilling machines.
Benefits: Cost effective

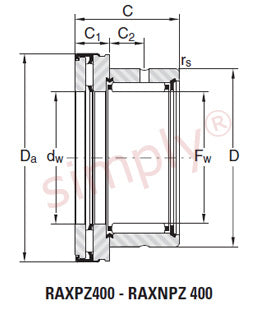

Technical

Fw = 35mm
D = 47mm
C = 27mm
da = 35mm
Da = 54mm
C1 = 9mm
C2 = 9mm
rs min = 0.85mm
Radial dynamic load = 22.1 kN
Radial static load = 40.8 kN
Axial dynamic load = 18.9 kN
Axial static load = 84 kN
Speed rating = 5.5 rpm
Weight = 0.157 kg
