• Major Brand RAXPZ 445 Combined Bearing with Incorporated Thrust Plate 45x58x27mm Allow 2-3 Days
  • Major Brand RAXPZ 445 Combined Bearing with Incorporated Thrust Plate 45x58x27mm Allow 2-3 Days
1 2

SKU: RAXPZ445-MB

Major Brand RAXPZ 445 Combined Bearing with Incorporated Thrust Plate 45x58x27mm Allow 2-3 Days

Major Brand RAXPZ 445 Combined Bearing with Incorporated Thrust Plate 45x58x27mm Allow 2-3 Days
$419.30 ex VAT
$419.30 ex VAT
Sale Sold out

In stock

Price Break
10+ $280.86
19+ $265.08
29+ $261.92
39+ $258.77
49+ $255.61
74+ $252.46
99+ $236.68
199+ $233.52
249+ $230.37
499+ $227.21
999+ $220.90

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

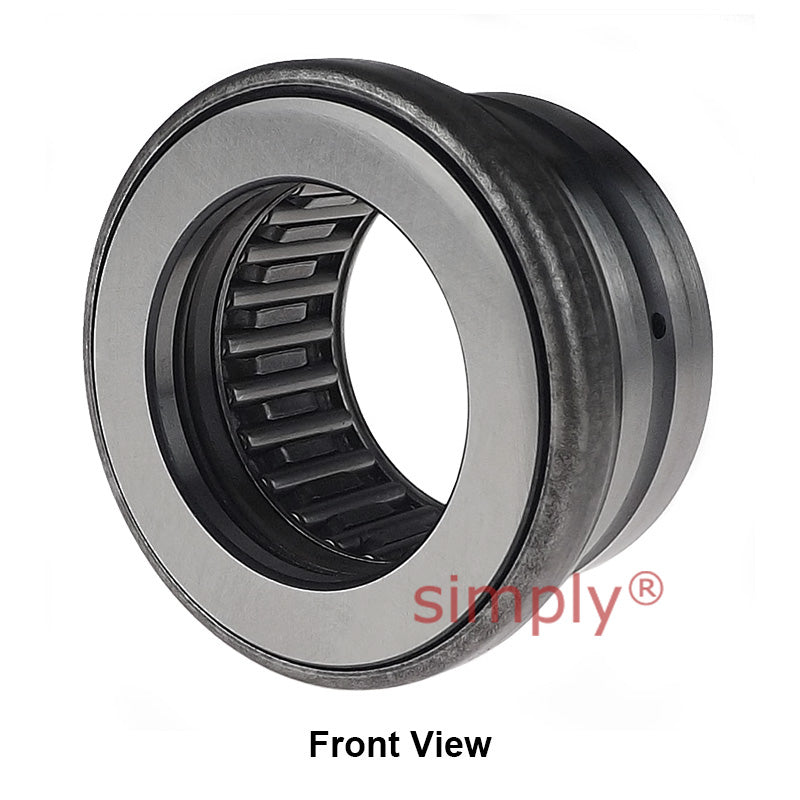

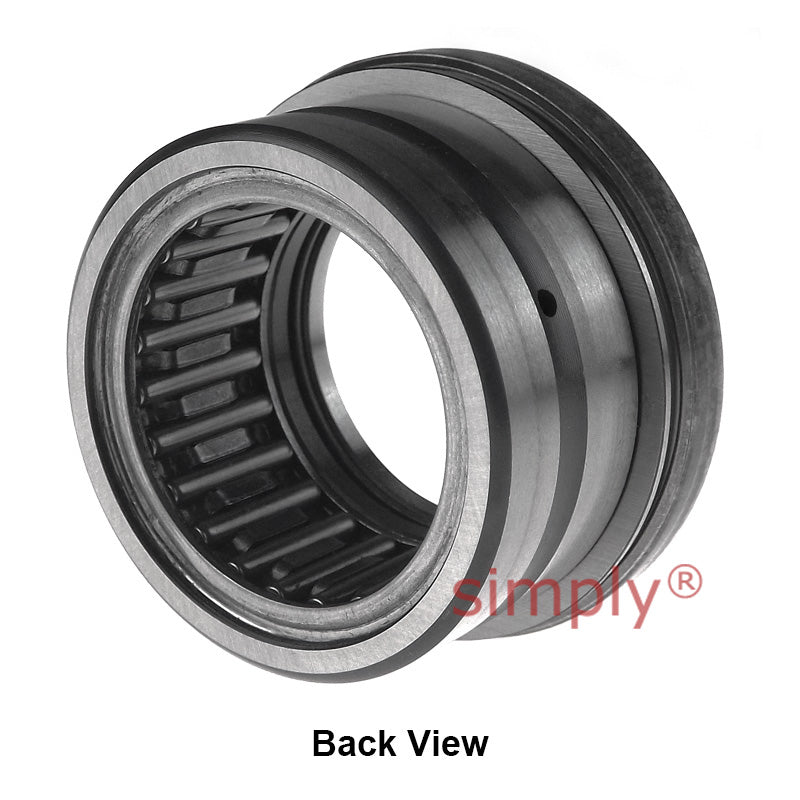

Nadella Combined Needle Bearings with Incorporated Thrust Plate: These bearings have an incorporated thrust plate retained by a steel ring set on the thrust plate. They are better protected against the introduction of dust and metal particles and are therefore recommended for spindles of drilling machines.
Benefits: Cost effective
Brand / Quality:
Major Brand - High Quality
Inside Diameter:
45mm
Outside Diameter:
58mm
Width:
27mm
Technical
Fw 45mm
D 58mm
C 27mm
da 45mm
Da 66mm
C1 9mm
C2 9mm
rs min 0.85mm
Radial dynamic load 24.9 kN
Radial static load 51.8 kN
Axial dynamic load 21.8 kN
Axial static load 109 kN
Speed rating 4.5 rpm
Weight 0.216 kg
