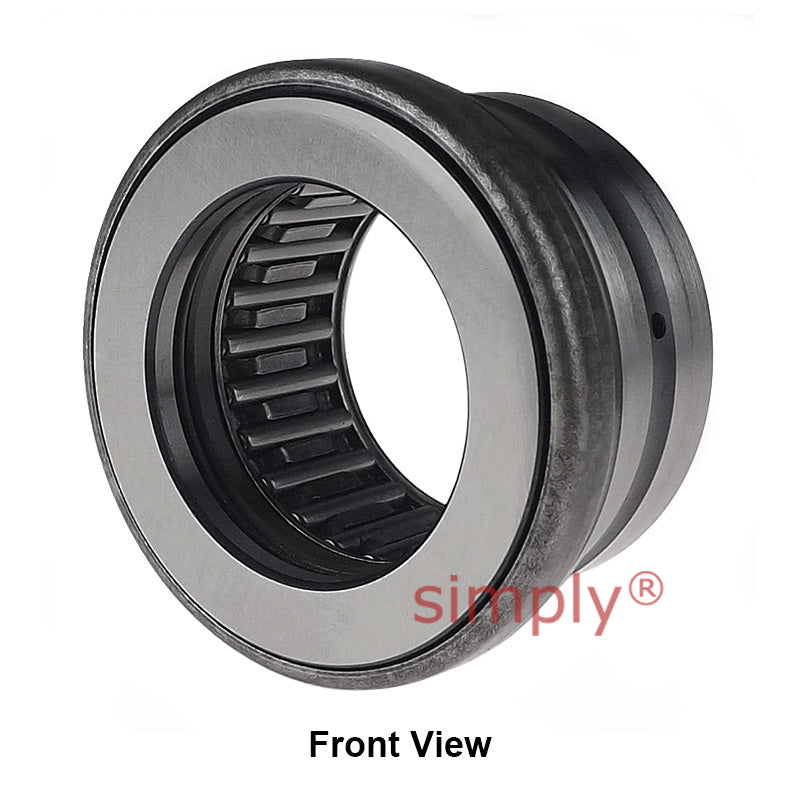

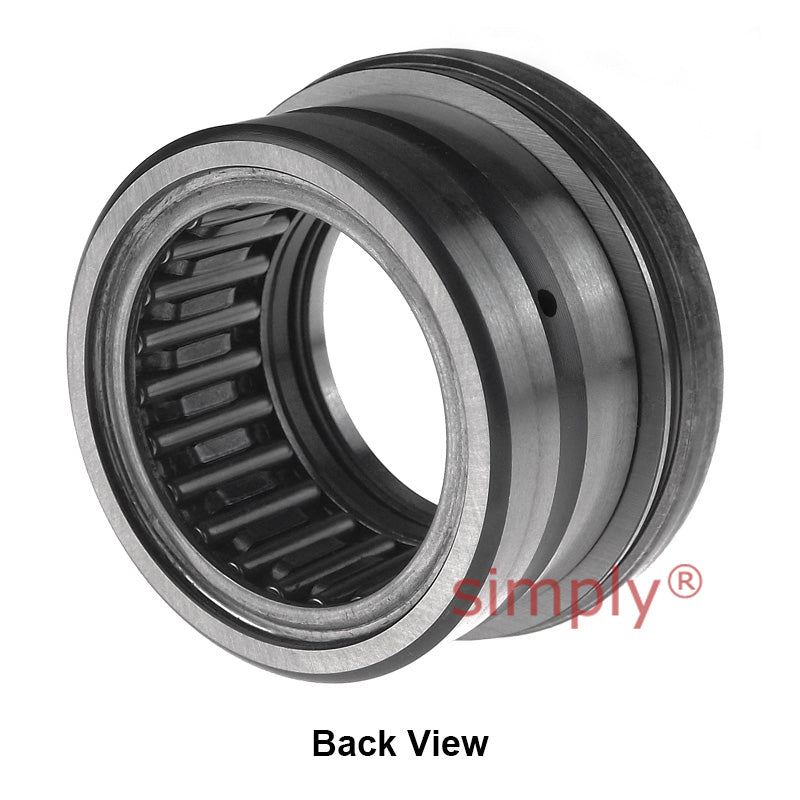

Major Brand RAXPZ 460 Combined Bearing with Incorporated Thrust Plate 60x72x32mm Allow 2-3 Days
Major Brand RAXPZ 460 Combined Bearing with Incorporated Thrust Plate 60x72x32mm Allow 2-3 Days
Major Brand RAXPZ 460 Combined Bearing with Incorporated Thrust Plate 60x72x32mm Allow 2-3 Days
Major Brand RAXPZ 460 Combined Bearing with Incorporated Thrust Plate 60x72x32mm Allow 2-3 Days

SKU: RAXPZ460-MB

Major Brand RAXPZ 460 Combined Bearing with Incorporated Thrust Plate 60x72x32mm Allow 2-3 Days

$810.86 ex VAT
$810.86
ex VAT
Not in stock

Quantity Price Breaks

10 $721.67
19 $681.12
29 $673.01
39 $664.91
49 $656.80
74 $648.69
99 $608.15
199 $600.04
249 $591.93
499 $583.82
999 $567.60
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
Major Brand RAXPZ 460 Combined Bearing with Incorporated Thrust Plate 60x72x32mm Allow 2-3 Days
Major Brand RAXPZ 460 Combined Bearing with Incorporated Thrust Plate 60x72x32mm Allow 2-3 Days
SKU: RAXPZ460-MB

Major Brand RAXPZ 460 Combined Bearing with Incorporated Thrust Plate 60x72x32mm Allow 2-3 Days

$810.86 ex VAT
$810.86
ex VAT

Description

Nadella Combined Needle Bearings with Incorporated Thrust Plate: These bearings have an incorporated thrust plate retained by a steel ring set on the thrust plate. They are better protected against the introduction of dust and metal particles and are therefore recommended for spindles of drilling machines.
Benefits: Cost effective

Technical

Fw = 60mm
D = 72mm
C = 32mm
da = 60mm
Da = 86mm
C1 = 11mm
C2 = 11mm
rs min = 1.3mm
Radial dynamic load = 31.9 kN
Radial static load = 78.1 kN
Axial dynamic load = 31.5 kN
Axial static load = 193 kN
Speed rating = 3.5 rpm
Weight = 0.365 kg
