Major Brand RAXZ 520 Combined Bearing with Incorporated Thrust Plate 20x30x29mm Allow 2-3 Days
Major Brand RAXZ 520 Combined Bearing with Incorporated Thrust Plate 20x30x29mm Allow 2-3 Days
Regular price
$458.58
ex VAT
Regular price
Sale price
$458.58
ex VAT
In stock
Price Break
10+
$307.12
19+
$289.87
29+
$286.42
39+
$282.97
49+
$279.52
74+
$276.07
99+
$258.81
199+
$255.36
249+
$251.91
499+
$248.46
999+
$241.56
Quantity
Couldn't load pickup availability
Share this product
Description
Description

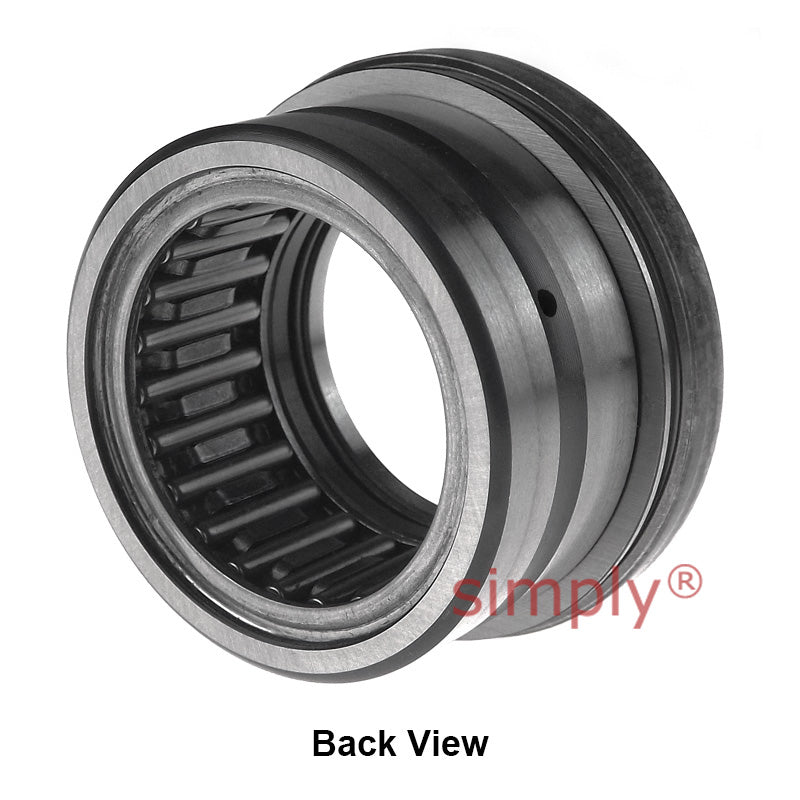

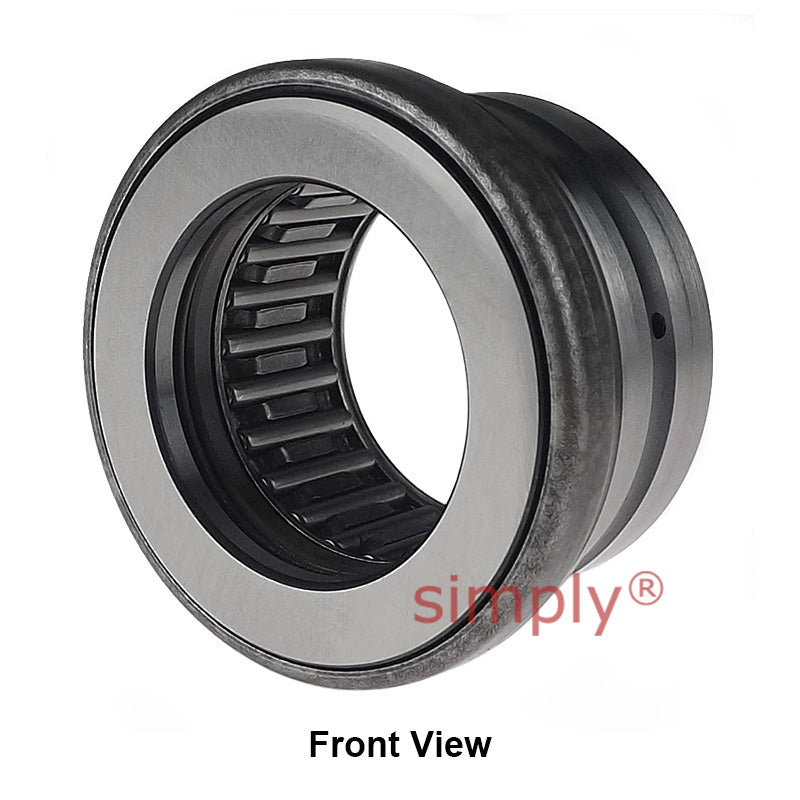

Nadella Combined Needle Bearings with Incorporated Thrust Plate: These bearings have an incorporated thrust plate retained by a steel ring set on the thrust plate. They are better protected against the introduction of dust and metal particles and are therefore recommended for spindles of drilling machines. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 30mm
- Width:
- 29mm
Technical
Technical
| Fw | 20mm |
|---|---|
| D | 30mm |
| C | 29mm |
| da | 20mm |
| Da | 35.4mm |
| C1 | 11mm |
| C2 | 9mm |
| rs min | 0.85mm |
| Radial dynamic load | 14.8 kN |
| Radial static load | 23.7 kN |
| Axial dynamic load | 22 kN |
| Axial static load | 54 kN |
| Speed rating | 9000 rpm |
| Weight | 0.086 kg |
