Description

Nadella Combined Needle Bearings with Incorporated Thrust Plate: These bearings have an incorporated thrust plate retained by a steel ring set on the thrust plate. They are better protected against the introduction of dust and metal particles and are therefore recommended for spindles of drilling machines.
Benefits: Cost effective

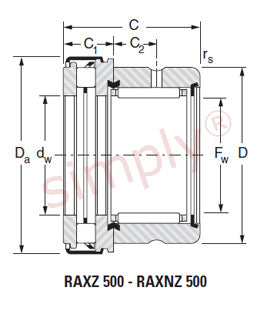

Technical

Fw = 25mm
D = 37mm
C = 29mm
da = 25mm
Da = 43mm
C1 = 11mm
C2 = 9mm
rs min = 0.85mm
Radial dynamic load = 15.1 kN
Radial static load = 26.2 kN
Axial dynamic load = 25.5 kN
Axial static load = 70 kN
Speed rating = 7500 rpm
Weight = 0.131 kg
