SKU: RAXZ535-MB

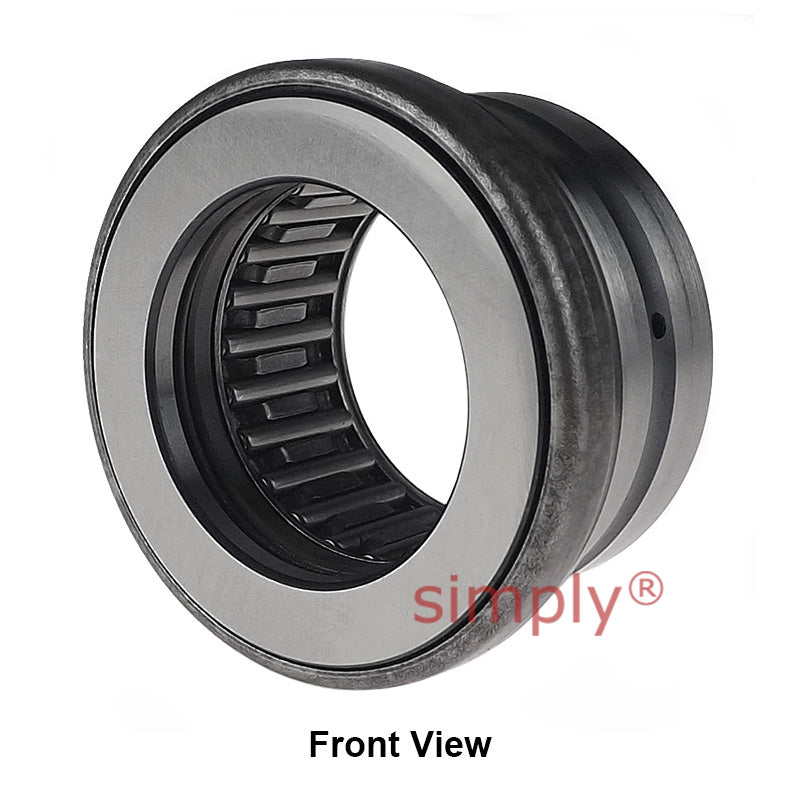

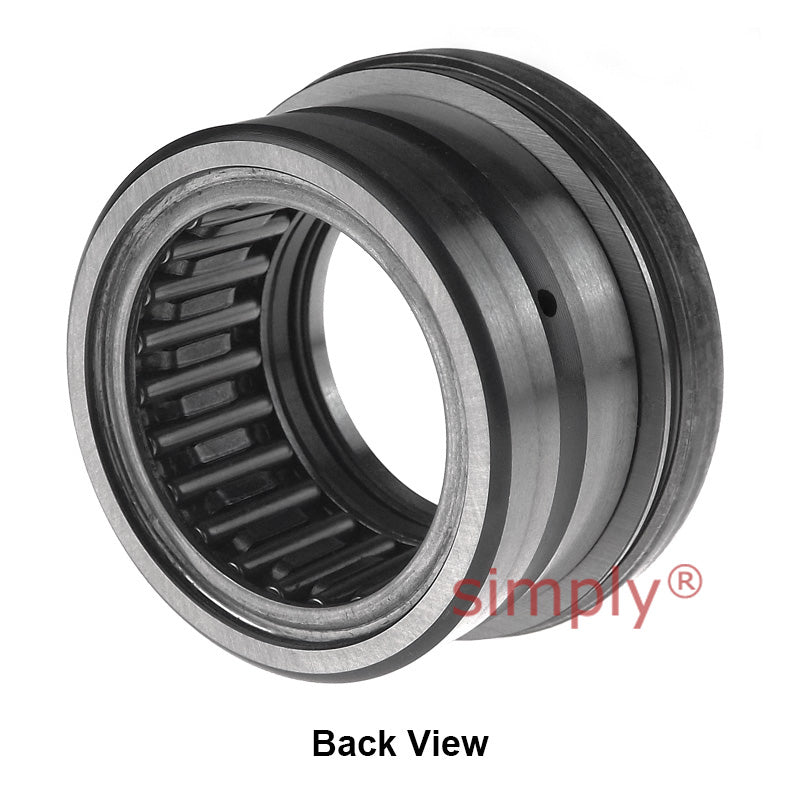

Major Brand RAXZ 535 Combined Bearing with Incorporated Thrust Plate 35x47x30mm Allow 2-3 Days
Major Brand RAXZ 535 Combined Bearing with Incorporated Thrust Plate 35x47x30mm Allow 2-3 Days
Regular price
$562.18
ex VAT
Regular price
Sale price
$562.18
ex VAT
In stock
Price Break
10+
$376.57
19+
$355.41
29+
$351.18
39+
$346.95
49+
$342.72
74+
$338.49
99+
$317.33
199+
$313.10
249+
$308.87
499+
$304.64
999+
$296.18
Quantity
Couldn't load pickup availability
Share this product
Description
Description
Nadella Combined Needle Bearings with Incorporated Thrust Plate: These bearings have an incorporated thrust plate retained by a steel ring set on the thrust plate. They are better protected against the introduction of dust and metal particles and are therefore recommended for spindles of drilling machines. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 47mm
- Width:
- 30mm
Technical
Technical
| Fw | 35mm |
|---|---|
| D | 47mm |
| C | 30mm |
| da | 35mm |
| Da | 54mm |
| C1 | 12mm |
| C2 | 9mm |
| rs min | 0.85mm |
| Radial dynamic load | 22.1 kN |
| Radial static load | 40.8 kN |
| Axial dynamic load | 33.8 kN |
| Axial static load | 94 kN |
| Speed rating | 5.5 rpm |
| Weight | 0.181 kg |
