SKU: RCJ1-15/16-INA

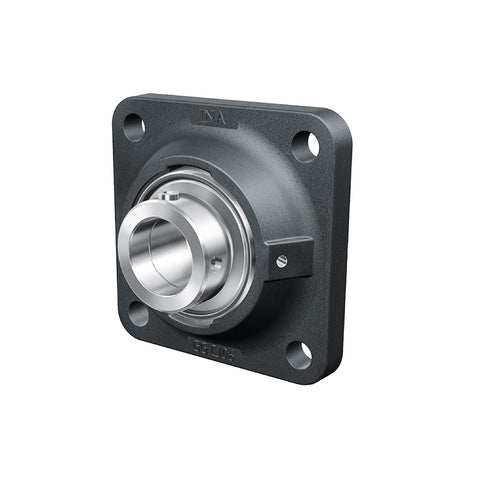

INA RCJ1-15/16 Four Bolt Cast Iron Square Housing with Eccentric Collar Insert 1-15/16 inch Bore
INA RCJ1-15/16 Four Bolt Cast Iron Square Housing with Eccentric Collar Insert 1-15/16 inch Bore
Out of stock
Description
Description
|
INA 4 Bolt Square Housing Units: Supplied with a fully sealed bearing insert fitted in the housing with an eccentric locking collar. This square cast iron housing has through holes for location purposes. Due to the spherical outside surface of the bearing outer ring and the concave housing bore, the unit can compensate for static angular misalignment of the shaft of up to 5 degrees if relubrication is not carried out and 2.5 degrees if relubrication is carried out. Benefits: Re-lubricatable, eccentric collar, tolerates misalignment of the shaft. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 49.21mm = 1.937 (1-15/16) inch
- Style:
- RCJ
- Bolt Hole Centres:
- 110.998mm = 4.37 inch
Technical
Technical
| d | 1-15/16 inch |
|---|---|
| d | 49.2mm |
| L | 5.63 inch |
| L | 143mm |
| U | 2.606 inch |
| U | 66.1mm |
| A | 1.654 inch |
| A1 | 0.591 inch |
| A2 | 1.102 inch |
| B1 | 2.472 inch |
| d3 | 2.717 inch |
| J | 4.37 inch |
| N | 0.669 inch |
| Q | 1/8 NPT |
| V | 4.961 inch |
| Mass | 6.37 lbs |
| Basic dynamic load rating Cr | 7900 lbf |
| Basic dynamic load rating Cr | 37500 N |
| Basic static load rating Cor | 5200 lbf |
| Basic static load rating Cor | 23200 N |
| Designation of housing | GG.CJ10 |
| Designation of bearing | G1115-KRR-B-AS2/V |
