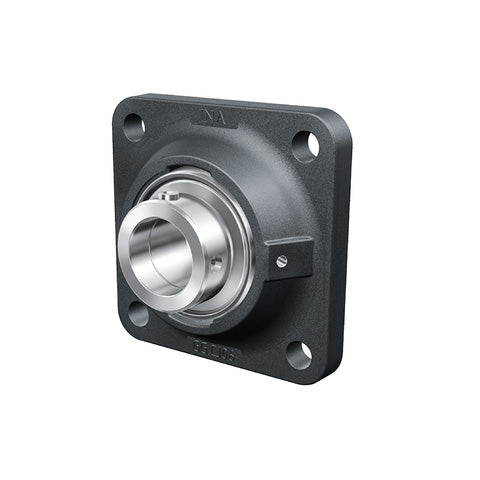

• INA RCJ100XL Four Bolt Cast Iron Square Housing with Eccentric Collar Insert 100mm Bore
  • INA
1 2

SKU: RCJ100-XL-INA

INA RCJ100XL Four Bolt Cast Iron Square Housing with Eccentric Collar Insert 100mm Bore

INA RCJ100XL Four Bolt Cast Iron Square Housing with Eccentric Collar Insert 100mm Bore
$985.89 ex VAT
$985.89 ex VAT
Sale Sold out

In stock

Price Break
4+ $660.38
9+ $623.28
19+ $615.86
29+ $608.44
39+ $601.02
49+ $593.60
59+ $556.50
69+ $549.08
79+ $541.66
89+ $534.24
99+ $519.40

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
INA 4 Bolt Square Housing Units: Supplied with a fully sealed bearing insert fitted in the housing with an eccentric locking collar. This square cast iron housing has through holes for location purposes. Due to the spherical outside surface of the bearing outer ring and the concave housing bore, the unit can compensate for static angular misalignment of the shaft of up to 5 degrees if relubrication is not carried out and 2.5 degrees if relubrication is carried out.
Benefits: Re-lubricatable, eccentric collar, tolerates misalignment of the shaft.
Brand / Quality:
INA - High Quality
Inside Diameter:
100mm
Style:
RCJ
Bolt Hole Centres:
210mm
Technical
d 100mm
L 265mm
U 77.5mm
A 46mm
A1 25mm
A2 28mm
B1 75mm
d3 max 132mm
J 210mm
N 27mm
Q M6
V 230mm
Mass 12.25 kg
Basic dynamic load rating Cr 130000 N
Basic static load rating Cor 93000 N
Designation of housing CJ20
Designation of bearing GE100-XL-KRR-B
