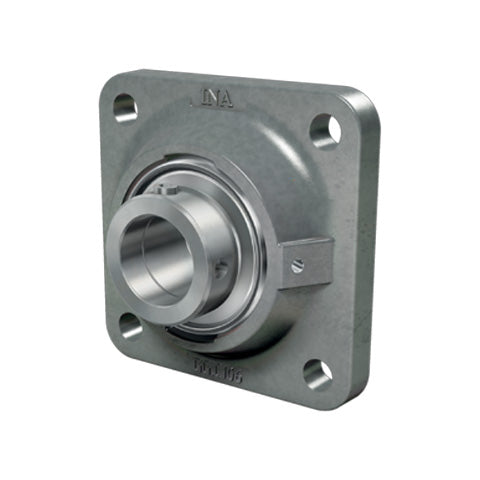

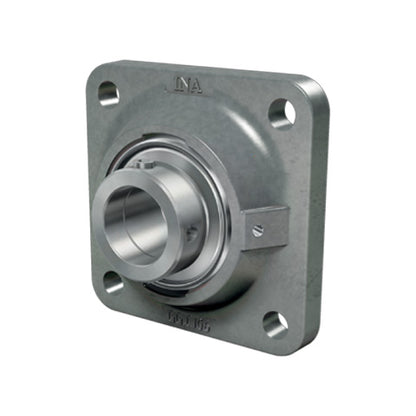

• INA RCJ25XLNFA125 Four Bolt Cast Iron Square Housing with Eccentric Collar Insert and Anti-Corrosion Protection 25mm Bore
  • INA
1 2

SKU: RCJ25-XL-N-FA125-INA

INA RCJ25XLNFA125 Four Bolt Cast Iron Square Housing with Eccentric Collar Insert and Anti-Corrosion Protection 25mm Bore

INA RCJ25XLNFA125 Four Bolt Cast Iron Square Housing with Eccentric Collar Insert and Anti-Corrosion Protection 25mm Bore
$68.35 ex VAT
$68.35 ex VAT
Sale Sold out

In stock

Price Break
4+ $45.78
9+ $43.21
19+ $42.70
29+ $42.18
39+ $41.67
49+ $41.15
59+ $38.58
69+ $38.07
79+ $37.55
89+ $37.04
99+ $36.01

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
INA 4 Bolt Square Housing Units: Supplied with a fully sealed bearing insert fitted in the housing with an eccentric locking collar. This square cast iron housing has through holes for location purposes. Due to the spherical outside surface of the bearing outer ring and the concave housing bore, the unit can compensate for static angular misalignment of the shaft of up to 5 degrees if relubrication is not carried out and 2.5 degrees if relubrication is carried out. This housing unit has a Corrotect® coating which makes them suitable for use if moisture, contaminated water, salt spray mist, weakly alkaline or weakly acidic cleaning agents are present.
Benefits: Re-lubricatable, eccentric collar, corrosion-resistant, tolerates misalignment of the shaft.
Brand / Quality:
INA - High Quality
Inside Diameter:
25mm
Style:
RCJ
Bolt Hole Centres:
70mm
Technical
d 25mm
L 95mm
U 46mm
A 29mm
A1 11mm
A2 19mm
B1 44.5mm
d3 max 37.5mm
J 70mm
N 11.5mm
Q M6
V 74mm
Mass 0.82 kg
Basic dynamic load rating Cr 14900 N
Basic static load rating Cor 7800 N
Designation of housing CJ05
Designation of bearing GE25-XL-KRR-B-FA125Bearing end cap, closed design (to be ordered separately)
KASK05 N/A
