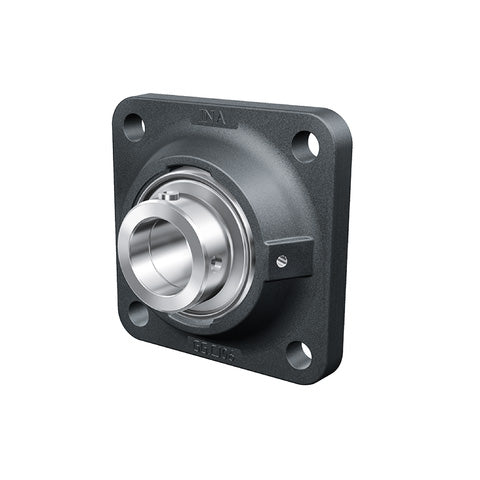

• INA RCJ25XLN Four Bolt Cast Iron Square Housing with Eccentric Collar Insert 25mm Bore
  • INA
1 2

SKU: RCJ25-XL-N-INA

INA RCJ25XLN Four Bolt Cast Iron Square Housing with Eccentric Collar Insert 25mm Bore

INA RCJ25XLN Four Bolt Cast Iron Square Housing with Eccentric Collar Insert 25mm Bore
$53.69 ex VAT
$53.69 ex VAT
Sale Sold out

In stock

Price Break
4+ $35.96
9+ $33.94
19+ $33.54
29+ $33.14
39+ $32.73
49+ $32.33
59+ $30.31
69+ $29.90
79+ $29.50
89+ $29.10
99+ $28.29

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
INA - High Quality
Inside Diameter:
25mm
Style:
RCJ
Bolt Hole Centres:
70mm
Technical
d 25mm
L 95mm
U 46mm
A 29mm
A1 11mm
A2 19mm
B1 44.5mm
d3 max 37.5mm
J 70mm
N 11.5mm
Q M6
V 74mm
Mass 0.82 kg
Basic dynamic load rating Cr 14900 N
Basic static load rating Cor 7800 N
Designation of housing CJ05
Designation of bearing GE25-XL-KRR-BBearing end cap, closed design (to be ordered separately)
KASK05 N/A
