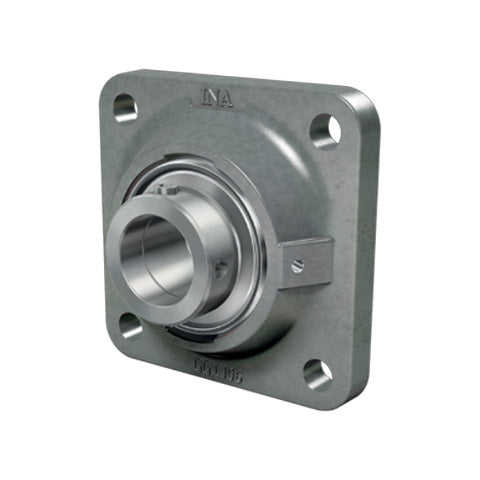

• INA RCJ35XLNFA125 Four Bolt Cast Iron Square Housing with Eccentric Collar Insert and Anti-Corrosion Protection 35mm Bore
  • INA
1 2

SKU: RCJ35-XL-N-FA125-INA

INA RCJ35XLNFA125 Four Bolt Cast Iron Square Housing with Eccentric Collar Insert and Anti-Corrosion Protection 35mm Bore

INA RCJ35XLNFA125 Four Bolt Cast Iron Square Housing with Eccentric Collar Insert and Anti-Corrosion Protection 35mm Bore
$96.04 ex VAT
$96.04 ex VAT
Sale Sold out

In stock

Price Break
4+ $64.33
9+ $60.72
19+ $59.99
29+ $59.27
39+ $58.55
49+ $57.82
59+ $54.21
69+ $53.49
79+ $52.76
89+ $52.04
99+ $50.60

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
INA 4 Bolt Square Housing Units: Supplied with a fully sealed bearing insert fitted in the housing with an eccentric locking collar. This square cast iron housing has through holes for location purposes. Due to the spherical outside surface of the bearing outer ring and the concave housing bore, the unit can compensate for static angular misalignment of the shaft of up to 5 degrees if relubrication is not carried out and 2.5 degrees if relubrication is carried out. This housing unit has a Corrotect® coating which makes them suitable for use if moisture, contaminated water, salt spray mist, weakly alkaline or weakly acidic cleaning agents are present.
Benefits: Re-lubricatable, eccentric collar, corrosion-resistant, tolerates misalignment of the shaft.
Brand / Quality:
INA - High Quality
Inside Diameter:
35mm
Style:
RCJ
Bolt Hole Centres:
92mm
Technical
d 35mm
L 118mm
U 53.5mm
A 30.5mm
A1 12.5mm
A2 21mm
B1 51.3mm
d3 max 55mm
J 92mm
N 14mm
Q M6
V 100mm
Mass 1.47 kg
Basic dynamic load rating Cr 27500 N
Basic static load rating Cor 15300 N
Designation of housing CJ07
Designation of bearing GE35-XL-KRR-B-FA125Bearing end cap, closed design (to be ordered separately)
KASK07 N/A
