• INA RCJL60XLN Four Bolt Cast Iron Square Housing with Drive Slot Insert 60mm Bore
  • INA
1 2

SKU: RCJL60-XL-N-INA

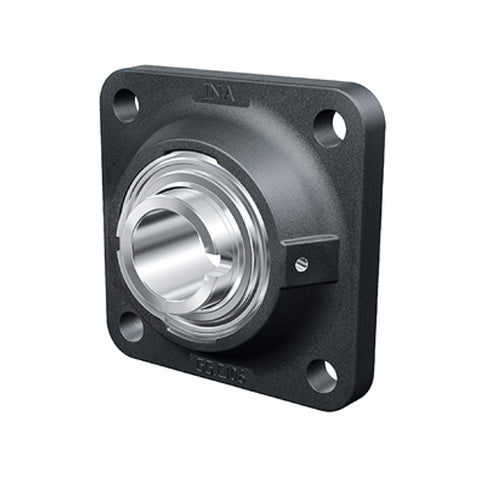

INA RCJL60XLN Four Bolt Cast Iron Square Housing with Drive Slot Insert 60mm Bore

INA RCJL60XLN Four Bolt Cast Iron Square Housing with Drive Slot Insert 60mm Bore
$242.22 ex VAT
$242.22 ex VAT
Sale Sold out

In stock

Price Break
4+ $162.25
9+ $153.13
19+ $151.31
29+ $149.49
39+ $147.66
49+ $145.84
59+ $136.73
69+ $134.90
79+ $133.08
89+ $131.26
99+ $127.61

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
INA 4 Bolt Square Housing Units: Supplied with a fully sealed bearing insert fitted in the housing with a drive slot. This square cast iron housing has through holes for location purposes. Due to the spherical outside surface of the bearing outer ring and the concave housing bore, the unit can compensate for static angular misalignment of the shaft of up to 5 degrees if relubrication is not carried out and 2.5 degrees if relubrication is carried out.
Benefits: Re-lubricatable, drive slot insert, tolerates misalignment of the shaft.
Brand / Quality:
INA - High Quality
Inside Diameter:
60mm
Style:
RCJL
Bolt Hole Centres:
143mm
Technical
d 60mm
L 175mm
U 71.3mm
A 46mm
A1 16mm
A2 34mm
B 61.9mm
J 143mm
N 18mm
Q M6
V 150mm
Mass 4.22 kg
Basic dynamic load rating Cr 56000 N
Basic static load rating Cor 36000 N
Designation of housing CJ12
Designation of bearing GLE60-XL-KRR-BBearing end cap, closed design (to be ordered separately)
KASK12 N/A
