• INA RCJO30XL Four Bolt Cast Iron Square Housing with Eccentric Collar Insert 30mm Bore
  • INA
1 2

SKU: RCJO30-XL-INA

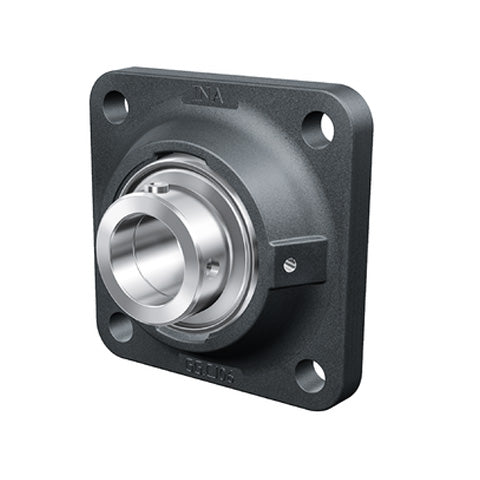

INA RCJO30XL Four Bolt Cast Iron Square Housing with Eccentric Collar Insert 30mm Bore

INA RCJO30XL Four Bolt Cast Iron Square Housing with Eccentric Collar Insert 30mm Bore
$119.13 ex VAT
$119.13 ex VAT
Sale Sold out

In stock

Price Break
4+ $79.80
9+ $75.31
19+ $74.42
29+ $73.52
39+ $72.62
49+ $71.73
59+ $67.25
69+ $66.35
79+ $65.45
89+ $64.56
99+ $62.76

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
INA 4 Bolt Square Housing Units: Supplied with a fully sealed bearing insert fitted in the housing with an eccentric locking collar. This square cast iron housing has through holes for location purposes. Due to the spherical outside surface of the bearing outer ring and the concave housing bore, the unit can compensate for static angular misalignment of the shaft of up to 5 degrees if relubrication is not carried out and 2.5 degrees if relubrication is carried out.
Benefits: Re-lubricatable, eccentric collar, tolerates misalignment of the shaft.
Brand / Quality:
INA - High Quality
Inside Diameter:
30mm
Style:
RCJO
Bolt Hole Centres:
95mm
Technical
d 30mm
L 125mm
U 53.1mm
A 30.6mm
A1 15mm
A2 20.6mm
B1 50.2mm
d3 max 51mm
J 95mm
N 14.5mm
Q M6
V 98mm
Mass 1.75 kg
Basic dynamic load rating Cr 31500 N
Basic static load rating Cor 16700 N
Designation of housing CJO06
Designation of bearing GNE30-XL-KRR-B
