• INA RCJO60XL Four Bolt Cast Iron Square Housing with Eccentric Collar Insert 60mm Bore
  • INA
1 2

SKU: RCJO60-XL-INA

INA RCJO60XL Four Bolt Cast Iron Square Housing with Eccentric Collar Insert 60mm Bore

INA RCJO60XL Four Bolt Cast Iron Square Housing with Eccentric Collar Insert 60mm Bore
$361.21 ex VAT
$361.21 ex VAT
Sale Sold out

In stock

Price Break
4+ $241.95
9+ $228.35
19+ $225.64
29+ $222.92
39+ $220.20
49+ $217.48
59+ $203.89
69+ $201.17
79+ $198.45
89+ $195.73
99+ $190.30

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

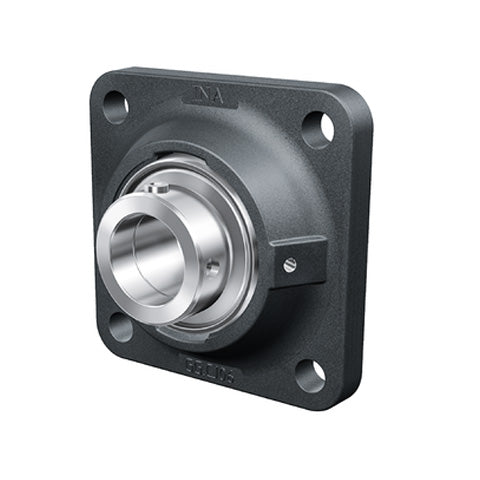

INA 4 Bolt Square Housing Units: Supplied with a fully sealed bearing insert fitted in the housing with an eccentric locking collar. This square cast iron housing has through holes for location purposes. Due to the spherical outside surface of the bearing outer ring and the concave housing bore, the unit can compensate for static angular misalignment of the shaft of up to 5 degrees if relubrication is not carried out and 2.5 degrees if relubrication is carried out.
Benefits: Re-lubricatable, eccentric collar, tolerates misalignment of the shaft.
Brand / Quality:
INA - High Quality
Inside Diameter:
60mm
Style:
RCJO
Bolt Hole Centres:
150mm
Technical
d 60mm
L 195mm
U 78.4mm
A 49.5mm
A1 22mm
A2 33mm
B1 68mm
d3 max 89mm
J 150mm
N 23mm
Q M6
V 170mm
Mass 6.8 kg
Basic dynamic load rating Cr 87000 N
Basic static load rating Cor 52000 N
Designation of housing CJO12
Designation of bearing GNE60-XL-KRR-B
