SKU: RCJT1-1/4

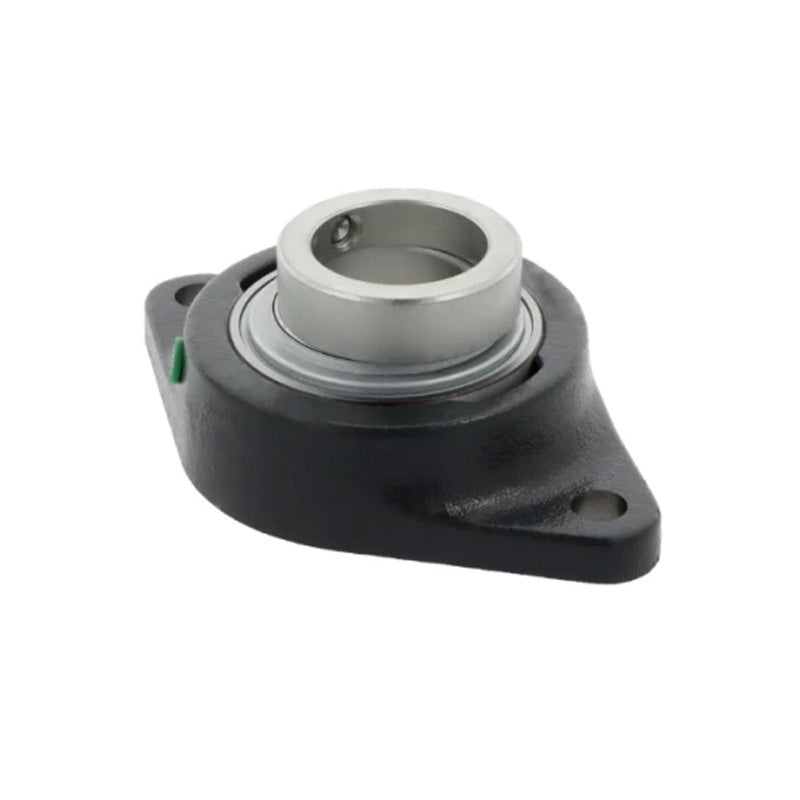

INA RCJT1-1/4 Two Bolt Cast Iron Oval Housing with Eccentric Collar Insert 1-1/4 inch Bore
INA RCJT1-1/4 Two Bolt Cast Iron Oval Housing with Eccentric Collar Insert 1-1/4 inch Bore
Out of stock
Description
Description
|
INA 2 Bolt Oval Housing Units: Supplied with a fully sealed bearing insert fitted in the housing with an eccentric locking collar. This oval cast iron housing has through holes for location purposes. Due to the spherical outside surface of the bearing outer ring and the concave housing bore, the unit can compensate for static angular misalignment of the shaft of up to 5 degrees if relubrication is not carried out and 2.5 degrees if relubrication is carried out. Benefits: Re-lubricatable, eccentric collar, tolerates misalignment of the shaft. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 31.75mm = 1.25 (1-1/4) inch
- Style:
- RCJT
- Bolt Hole Centres:
- 130mm = 5.118 inch
Technical
Technical
| d | 1-1/4 inch |
|---|---|
| d | 31.8mm |
| H | 6.142 inch |
| H | 156mm |
| U | 2.106 inch |
| U | 53.3mm |
| A | 1.358 inch |
| A1 | 0.551 inch |
| A2 | 0.827 inch |
| B1 | 2.02 inch |
| d3 | 2.008 inch |
| J | 5.118 inch |
| L | 3.642 inch |
| N | 0.551 inch |
| Q | 1/8 NPT |
| V | 3.642 inch |
| Mass | 2.93 lbs |
| Basic dynamic load rating Cr | 5800 lbf |
| Basic dynamic load rating Cr | 27500 N |
| Basic static load rating Cor | 3450 lbf |
| Basic static load rating Cor | 15300 N |
| Designation of housing | GG.CJT07 |
| Designation of bearing | G1104-KRR-B-AS2/V |
