• INA RCJT17XL Two Bolt Cast Iron Oval Housing with Eccentric Collar Insert 17mm Bore
  • INA
1 2

SKU: RCJT17-XL-INA

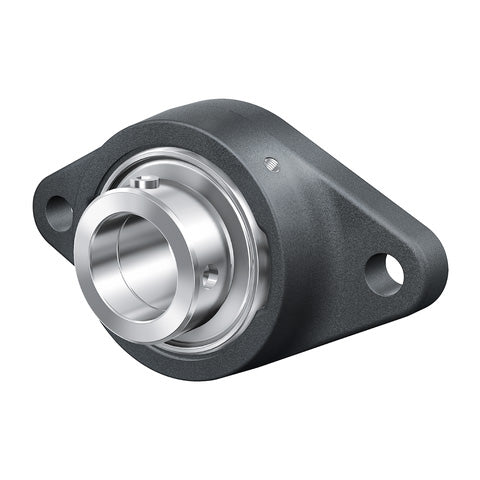

INA RCJT17XL Two Bolt Cast Iron Oval Housing with Eccentric Collar Insert 17mm Bore

INA RCJT17XL Two Bolt Cast Iron Oval Housing with Eccentric Collar Insert 17mm Bore
$47.94 ex VAT
$47.94 ex VAT
Sale Sold out

In stock

Price Break
4+ $32.11
9+ $30.31
19+ $29.95
29+ $29.59
39+ $29.22
49+ $28.86
59+ $27.06
69+ $26.70
79+ $26.34
89+ $25.98
99+ $25.26

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
INA 2 Bolt Oval Housing Units: Supplied with a fully sealed bearing insert fitted in the housing with an eccentric locking collar. This oval cast iron housing has through holes for location purposes. Due to the spherical outside surface of the bearing outer ring and the concave housing bore, the unit can compensate for static angular misalignment of the shaft of up to 5 degrees if relubrication is not carried out and 2.5 degrees if relubrication is carried out.
Benefits: Re-lubricatable, eccentric collar, tolerates misalignment of the shaft.
Brand / Quality:
INA - High Quality
Inside Diameter:
17mm
Style:
RCJT
Bolt Hole Centres:
76.5mm
Technical
d 17mm
H 99mm
U 40.4mm
A 25mm
A1 9.5mm
A2 17mm
B1 37.4mm
d3 max 28.4mm
J 76.5mm
L 57mm
N 11.5mm
Q M6mm
V 57mm
Mass 0.41 kg
Basic dynamic load rating Cr 10100 N
Basic static load rating Cor 4750 N
Designation of housing CJT03
Designation of bearing GE17-XL-KRR-B
