• INA RCJT20XLNFA125 Two Bolt Cast Iron Oval Housing with Eccentric Collar Insert and Anti-Corrosion Protection 20mm Bore
  • INA
1 2

SKU: RCJT20-XL-N-FA125-INA

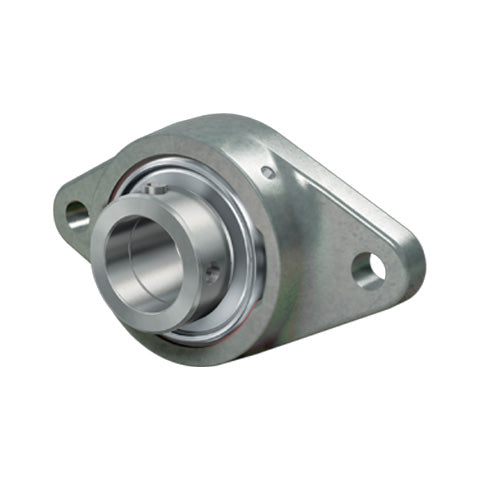

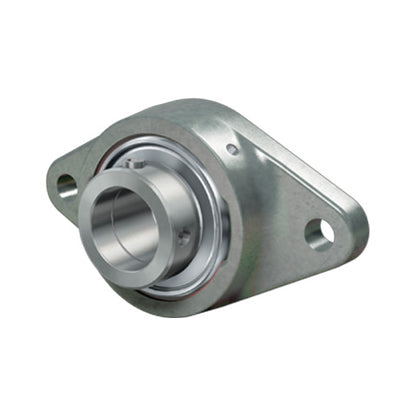

INA RCJT20XLNFA125 Two Bolt Cast Iron Oval Housing with Eccentric Collar Insert and Anti-Corrosion Protection 20mm Bore

INA RCJT20XLNFA125 Two Bolt Cast Iron Oval Housing with Eccentric Collar Insert and Anti-Corrosion Protection 20mm Bore
$61.41 ex VAT
$61.41 ex VAT
Sale Sold out

In stock

Price Break
4+ $41.14
9+ $38.82
19+ $38.36
29+ $37.90
39+ $37.44
49+ $36.98
59+ $34.67
69+ $34.20
79+ $33.74
89+ $33.28
99+ $32.35

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
INA - High Quality
Inside Diameter:
20mm
Style:
RCJT
Bolt Hole Centres:
90mm
Technical
d 20mm
H 112mm
U 45.6mm
A 28mm
A1 10mm
A2 19mm
B1 43.7mm
d3 max 33mm
J 90mm
L 61mm
N 11.5mm
Q M6mm
V 61mm
Mass 0.52 kg
Basic dynamic load rating Cr 13600 N
Basic static load rating Cor 6600 N
Designation of housing CJT04
Designation of bearing GE20-XL-KRR-B-FA125
Bearing end cap, closed design (to be ordered separately) KASK04
