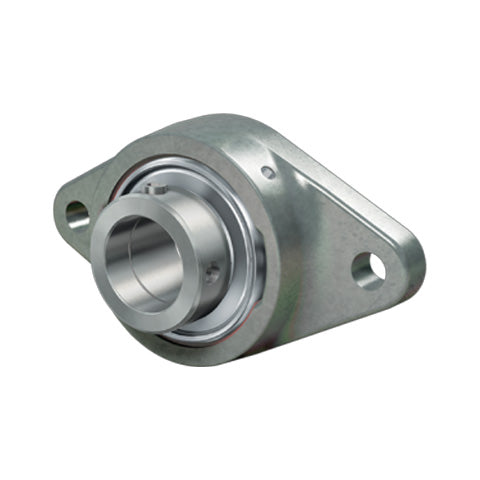

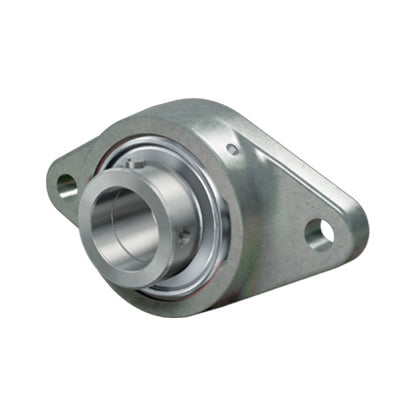

• INA RCJT30XLNFA125 Two Bolt Cast Iron Oval Housing with Eccentric Collar Insert and Anti-Corrosion Protection 30mm Bore
  • INA
1 2

SKU: RCJT30-XL-N-FA125-INA

INA RCJT30XLNFA125 Two Bolt Cast Iron Oval Housing with Eccentric Collar Insert and Anti-Corrosion Protection 30mm Bore

INA RCJT30XLNFA125 Two Bolt Cast Iron Oval Housing with Eccentric Collar Insert and Anti-Corrosion Protection 30mm Bore
$82.86 ex VAT
$82.86 ex VAT
Sale Sold out

In stock

Price Break
4+ $55.50
9+ $52.38
19+ $51.76
29+ $51.14
39+ $50.51
49+ $49.89
59+ $46.77
69+ $46.15
79+ $45.52
89+ $44.90
99+ $43.65

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
INA 2 Bolt Oval Housing Units: Supplied with a fully sealed bearing insert fitted in the housing with an eccentric locking collar. This oval cast iron housing has through holes for location purposes. Due to the spherical outside surface of the bearing outer ring and the concave housing bore, the unit can compensate for static angular misalignment of the shaft of up to 5 degrees if relubrication is not carried out and 2.5 degrees if relubrication is carried out. This housing unit has a Corrotect® coating which makes them suitable for use if moisture, contaminated water, salt spray mist, weakly alkaline or weakly acidic cleaning agents are present.
Benefits: Re-lubricatable, eccentric collar, corrosion-resistant, tolerates misalignment of the shaft.
Brand / Quality:
INA - High Quality
Inside Diameter:
30mm
Style:
RCJT
Bolt Hole Centres:
116.5mm
Technical
d 30mm
H 142mm
U 50.2mm
A 29mm
A1 12mm
A2 20mm
B1 48.5mm
d3 max 44mm
J 116.5mm
L 80mm
N 11.5mm
Q M6mm
V 80mm
Mass 0.88 kg
Basic dynamic load rating Cr 20700 N
Basic static load rating Cor 11300 N
Designation of housing CJT06
Designation of bearing GE30-XL-KRR-B-FA125
Bearing end cap, closed design (to be ordered separately) KASK06
