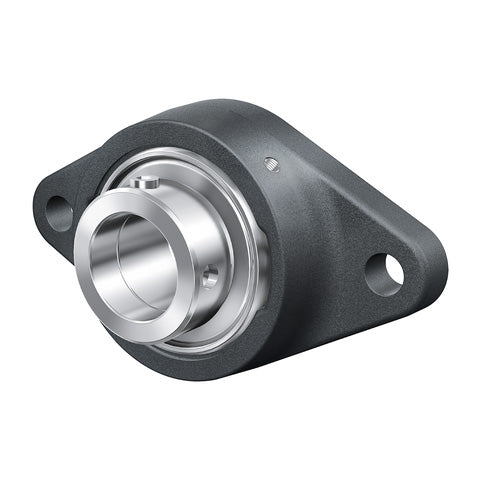

• INA RCJT30XLN Two Bolt Cast Iron Oval Housing with Eccentric Collar Insert 30mm Bore
  • INA
1 2

SKU: RCJT30-XL-N-INA

INA RCJT30XLN Two Bolt Cast Iron Oval Housing with Eccentric Collar Insert 30mm Bore

INA RCJT30XLN Two Bolt Cast Iron Oval Housing with Eccentric Collar Insert 30mm Bore
$64.88 ex VAT
$64.88 ex VAT
Sale Sold out

In stock

Price Break
4+ $43.46
9+ $41.02
19+ $40.53
29+ $40.04
39+ $39.55
49+ $39.06
59+ $36.62
69+ $36.13
79+ $35.65
89+ $35.16
99+ $34.18

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
INA - High Quality
Inside Diameter:
30mm
Style:
RCJT
Bolt Hole Centres:
116.5mm
Technical
d 30mm
H 142mm
U 50.2mm
A 29mm
A1 12mm
A2 20mm
B1 48.5mm
d3 max 44mm
J 116.5mm
L 80mm
N 11.5mm
Q M6mm
V 80mm
Mass 0.88 kg
Basic dynamic load rating Cr 20700 N
Basic static load rating Cor 11300 N
Designation of housing CJT06
Designation of bearing GE30-XL-KRR-B
Bearing end cap, closed design (to be ordered separately) KASK06
