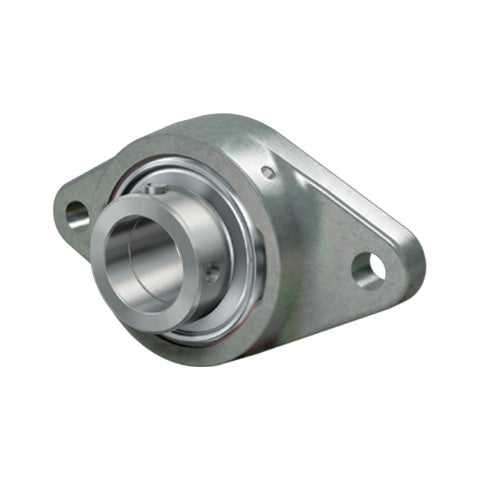

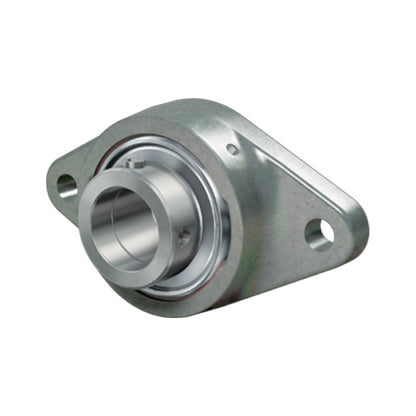

• INA RCJT40XLNFA125 Two Bolt Cast Iron Oval Housing with Eccentric Collar Insert and Anti-Corrosion Protection 40mm Bore
  • INA
1 2

SKU: RCJT40-XL-N-FA125-INA

INA RCJT40XLNFA125 Two Bolt Cast Iron Oval Housing with Eccentric Collar Insert and Anti-Corrosion Protection 40mm Bore

INA RCJT40XLNFA125 Two Bolt Cast Iron Oval Housing with Eccentric Collar Insert and Anti-Corrosion Protection 40mm Bore
$109.48 ex VAT
$109.48 ex VAT
Sale Sold out

In stock

Price Break
4+ $73.34
9+ $69.22
19+ $68.39
29+ $67.57
39+ $66.74
49+ $65.92
59+ $61.80
69+ $60.98
79+ $60.15
89+ $59.33
99+ $57.68

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
INA 2 Bolt Oval Housing Units: Supplied with a fully sealed bearing insert fitted in the housing with an eccentric locking collar. This oval cast iron housing has through holes for location purposes. Due to the spherical outside surface of the bearing outer ring and the concave housing bore, the unit can compensate for static angular misalignment of the shaft of up to 5 degrees if relubrication is not carried out and 2.5 degrees if relubrication is carried out. This housing unit has a Corrotect® coating which makes them suitable for use if moisture, contaminated water, salt spray mist, weakly alkaline or weakly acidic cleaning agents are present.
Benefits: Re-lubricatable, eccentric collar, corrosion-resistant, tolerates misalignment of the shaft.
Brand / Quality:
INA - High Quality
Inside Diameter:
40mm
Style:
RCJT
Bolt Hole Centres:
143.5mm
Technical
d 40mm
H 172mm
U 59.1mm
A 34.5mm
A1 13mm
A2 24mm
B1 56.5mm
d3 max 58mm
J 143.5mm
L 105mm
N 14mm
Q M6mm
V 105mm
Mass 1.66 kg
Basic dynamic load rating Cr 34500 N
Basic static load rating Cor 19800 N
Designation of housing CJT08
Designation of bearing GE40-XL-KRR-B-FA125
Bearing end cap, closed design (to be ordered separately) KASK08
