• INA RCJT65214XL Two Bolt Cast Iron Oval Housing with Eccentric Collar Insert 65mm Bore
  • INA
1 2

SKU: RCJT65-214-XL-INA

INA RCJT65214XL Two Bolt Cast Iron Oval Housing with Eccentric Collar Insert 65mm Bore

INA RCJT65214XL Two Bolt Cast Iron Oval Housing with Eccentric Collar Insert 65mm Bore
$322.26 ex VAT
$322.26 ex VAT
Sale Sold out

In stock

Price Break
4+ $215.86
9+ $203.73
19+ $201.31
29+ $198.88
39+ $196.46
49+ $194.03
59+ $181.91
69+ $179.48
79+ $177.05
89+ $174.63
99+ $169.78

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

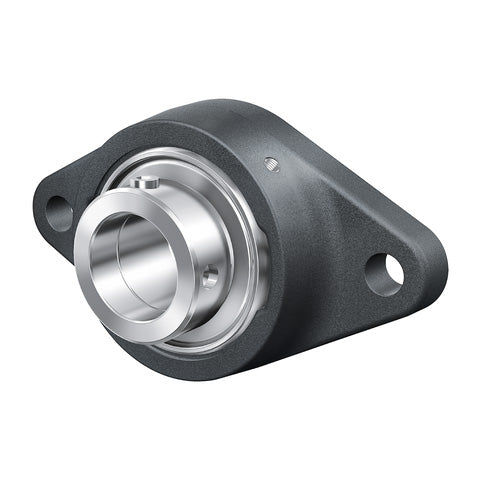

INA 2 Bolt Oval Housing Units: Supplied with a fully sealed bearing insert fitted in the housing with an eccentric locking collar. This oval cast iron housing has through holes for location purposes. Due to the spherical outside surface of the bearing outer ring and the concave housing bore, the unit can compensate for static angular misalignment of the shaft of up to 5 degrees if relubrication is not carried out and 2.5 degrees if relubrication is carried out.
Benefits: Re-lubricatable, eccentric collar, tolerates misalignment of the shaft.
Brand / Quality:
INA - High Quality
Inside Diameter:
65mm
Style:
RCJT
Bolt Hole Centres:
216mm
Technical
d 65mm
H 258mm
U 82.6mm
A 57mm
A1 18mm
A2 38mm
B1 66mm
d3 max 96mm
J 216mm
L 160mm
N 21mm
Q M6mm
V 160mm
Mass 6.41 kg
Basic dynamic load rating Cr 66000 N
Basic static load rating Cor 44000 N
Designation of housing CJT13/14
Designation of bearing GE65-214-XL-KRR-B
