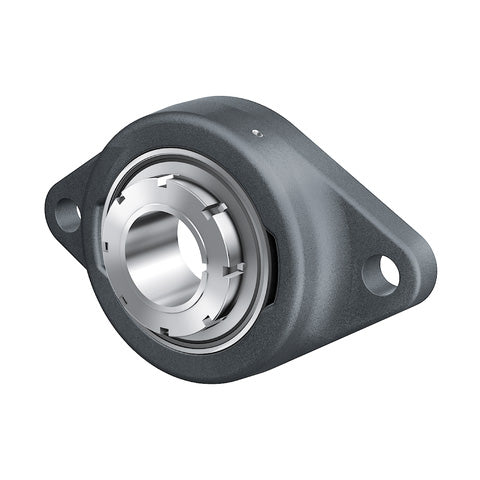

• INA RCJTA20XLN Two Bolt Cast Iron Oval Housing with Adaptor Sleeve 20mm Bore
  • INA
1 2

SKU: RCJTA20-XL-N-INA

INA RCJTA20XLN Two Bolt Cast Iron Oval Housing with Adaptor Sleeve 20mm Bore

INA RCJTA20XLN Two Bolt Cast Iron Oval Housing with Adaptor Sleeve 20mm Bore
$73.81 ex VAT
$73.81 ex VAT
Sale Sold out

In stock

Price Break
4+ $49.44
9+ $46.66
19+ $46.11
29+ $45.55
39+ $45.00
49+ $44.44
59+ $41.66
69+ $41.11
79+ $40.55
89+ $40.00
99+ $38.89

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
INA - High Quality
Inside Diameter:
20mm
Style:
RCJTA
Bolt Hole Centres:
90mm
Technical
d 20mm
H 112mm
U 42.5mm
A 28mm
A1 10mm
A2 19mm
B1 28mm
d3 max 32mm
J 90mm
L 61mm
N 11.5mm
Q M6mm
V 61mm
Mass 0.52 kg
Basic dynamic load rating Cr 13400 N
Basic static load rating Cor 7000 N
Designation of housing CJT04
Designation of bearing GSH20-XL-2RSR-B
Bearing end cap, closed design (to be ordered separately) KASK04
