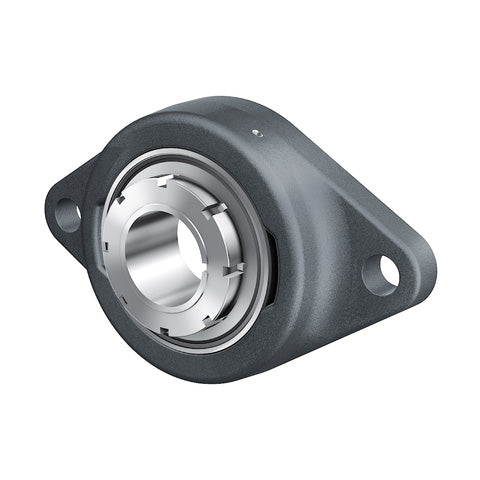

• INA RCJTA30XLN Two Bolt Cast Iron Oval Housing with Adaptor Sleeve 30mm Bore
  • INA
1 2

SKU: RCJTA30-XL-N-INA

INA RCJTA30XLN Two Bolt Cast Iron Oval Housing with Adaptor Sleeve 30mm Bore

INA RCJTA30XLN Two Bolt Cast Iron Oval Housing with Adaptor Sleeve 30mm Bore
$86.98 ex VAT
$86.98 ex VAT
Sale Sold out

In stock

Price Break
4+ $58.26
9+ $54.99
19+ $54.33
29+ $53.68
39+ $53.02
49+ $52.37
59+ $49.10
69+ $48.44
79+ $47.79
89+ $47.13
99+ $45.82

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
INA - High Quality
Inside Diameter:
30mm
Style:
RCJTA
Bolt Hole Centres:
116.5mm
Technical
d 30mm
H 142mm
U 44mm
A 29mm
A1 12mm
A2 20mm
B1 32mm
d3 max 45mm
J 116.5mm
L 80mm
N 11.5mm
Q M6mm
V 80mm
Mass 0.77 kg
Basic dynamic load rating Cr 20100 N
Basic static load rating Cor 11600 N
Designation of housing CJT06
Designation of bearing GSH30-XL-2RSR-B
Bearing end cap, closed design (to be ordered separately) KASK06
