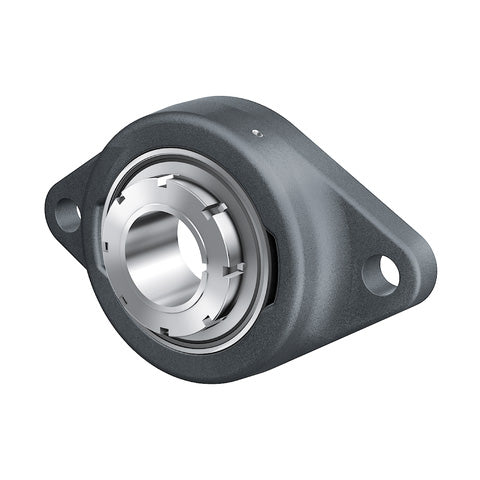

• INA RCJTA35XLN Two Bolt Cast Iron Oval Housing with Adaptor Sleeve 35mm Bore
  • INA
1 2

SKU: RCJTA35-XL-N-INA

INA RCJTA35XLN Two Bolt Cast Iron Oval Housing with Adaptor Sleeve 35mm Bore

INA RCJTA35XLN Two Bolt Cast Iron Oval Housing with Adaptor Sleeve 35mm Bore
$103.97 ex VAT
$103.97 ex VAT
Sale Sold out

In stock

Price Break
4+ $69.64
9+ $65.73
19+ $64.95
29+ $64.17
39+ $63.38
49+ $62.60
59+ $58.69
69+ $57.91
79+ $57.12
89+ $56.34
99+ $54.78

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
INA 2 Bolt Oval Housing Units: Supplied with a fully sealed bearing insert fitted in the housing with an adaptor sleeve. This oval cast iron housing has through holes for location purposes. Due to the spherical outside surface of the bearing outer ring and the concave housing bore, the unit can compensate for static angular misalignment of the shaft of up to 5 degrees if relubrication is not carried out and 2.5 degrees if relubrication is carried out.
Benefits: Re-lubricatable, adaptor sleeve, tolerates misalignment of the shaft.
Brand / Quality:
INA - High Quality
Inside Diameter:
35mm
Style:
RCJTA
Bolt Hole Centres:
130mm
Technical
d 35mm
H 155mm
U 46mm
A 30.5mm
A1 12.5mm
A2 21mm
B1 34mm
d3 max 52mm
J 130mm
L 92mm
N 14mm
Q M6mm
V 92mm
Mass 1.06 kg
Basic dynamic load rating Cr 26500 N
Basic static load rating Cor 15700 N
Designation of housing CJT07
Designation of bearing GSH35-XL-2RSR-B
Bearing end cap, closed design (to be ordered separately) KASK07
