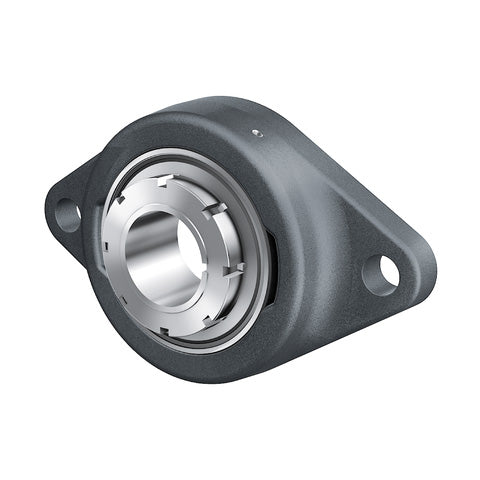

INA RCJTA40XLN Two Bolt Cast Iron Oval Housing with Adaptor Sleeve 40mm Bore

Name: INA RCJTA40XLN Two Bolt Cast Iron Oval Housing with Adaptor Sleeve 40mm Bore
Brand: INA
SKU: RCJTA40-XL-N-INA
Price: 115.32 USD
Availability: InStock

$115.32 ex VAT

Sale Sold out

In stock

Price Break

4+ $77.24

9+ $72.90

19+ $72.04

29+ $71.17

39+ $70.30

49+ $69.43

59+ $65.09

69+ $64.22

79+ $63.36

89+ $62.49

99+ $60.75

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

INA 2 Bolt Oval Housing Units: Supplied with a fully sealed bearing insert fitted in the housing with an adaptor sleeve. This oval cast iron housing has through holes for location purposes. Due to the spherical outside surface of the bearing outer ring and the concave housing bore, the unit can compensate for static angular misalignment of the shaft of up to 5 degrees if relubrication is not carried out and 2.5 degrees if relubrication is carried out.
Benefits: Re-lubricatable, adaptor sleeve, tolerates misalignment of the shaft.

Brand / Quality:: INA - High Quality
Inside Diameter:: 40mm
Style:: RCJTA
Bolt Hole Centres:: 143.5mm

Technical

d	40mm
H	172mm
U	51mm
A	34.5mm
A1	13mm
A2	24mm
B1	38mm
d3 max	58mm
J	143.5mm
L	105mm
N	14mm
Q	M6mm
V	105mm
Mass	1.46 kg
Basic dynamic load rating Cr	31000 N
Basic static load rating Cor	19700 N
Designation of housing	CJT08
Designation of bearing	GSH40-XL-2RSR-B
Bearing end cap, closed design (to be ordered separately)	KASK08
