SKU: RCJTY20-TV-VA-INA

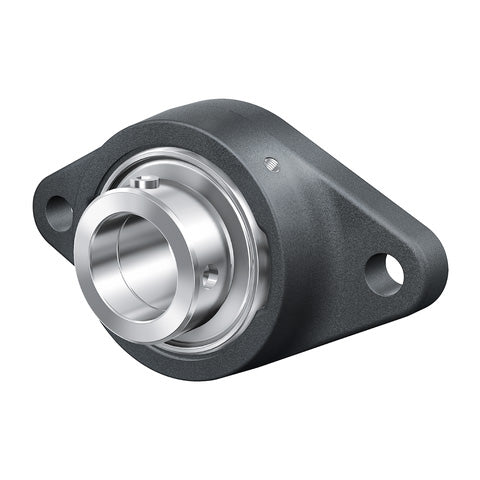

INA RCJTY20-TV-VA Two Bolt Plastic Oval Housing with Grub Screw Insert Corrosion-Resistant Design 20mm Bore

Name: INA RCJTY20-TV-VA Two Bolt Plastic Oval Housing with Grub Screw Insert Corrosion-Resistant Design 20mm Bore
Brand: INA
SKU: RCJTY20-TV-VA-INA
Price: 111.19 USD
Availability: InStock

$111.19 ex VAT

Sale Sold out

In stock

Price Break

4+ $74.48

9+ $70.29

19+ $69.45

29+ $68.62

39+ $67.78

49+ $66.94

59+ $62.76

69+ $61.92

79+ $61.09

89+ $60.25

99+ $58.58

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: INA - High Quality
Inside Diameter:: 20mm
Style:: RCJTY
Bolt Hole Centres:: 90mm

Technical

d	20mm
H	114mm
U	33.7mm
A	26.5mm
A1	11.4mm
A2	15.4mm
B	31mm
J	90mm
L	63.8mm
N	11mm
Q	1/4 - 28 UNF
V	63.8mm
Mass	0.26 kg
Basic dynamic load rating Cr	12300 N
Basic static load rating Cor	6300 N
Load carrying capacity of housing Cor G	8500 N
Designation of housing	GEH.CJT04-TV
Designation of bearing	GYE20-KRR-B-FA107-VA
Bearing end cap, closed design (supplied with end cap)	KASK04-S-G
Bearing end cap, open design, with integral rotary shaft seal (available by agreement)	KASK04-S-R-NBR
