SKU: RCJTY25-TV-VA-INA

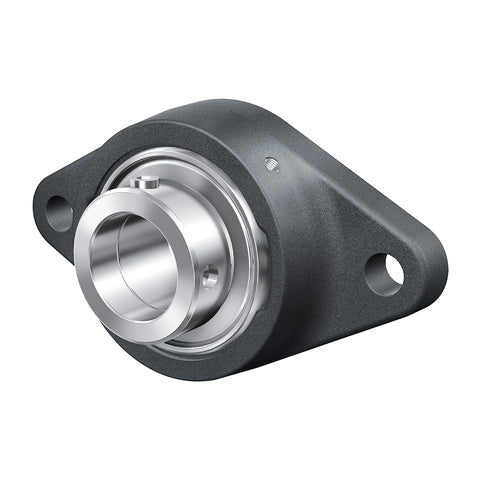

INA RCJTY25-TV-VA Two Bolt Plastic Oval Housing with Grub Screw Insert Corrosion-Resistant Design 25mm Bore

Name: INA RCJTY25-TV-VA Two Bolt Plastic Oval Housing with Grub Screw Insert Corrosion-Resistant Design 25mm Bore
Brand: INA
SKU: RCJTY25-TV-VA-INA
Price: 217.76 USD
Availability: InStock

$217.76 ex VAT

Sale Sold out

In stock

Price Break

4+ $145.86

9+ $137.67

19+ $136.03

29+ $134.39

39+ $132.75

49+ $131.11

59+ $122.92

69+ $121.28

79+ $119.64

89+ $118.00

99+ $114.72

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: INA - High Quality
Inside Diameter:: 25mm
Style:: RCJTY
Bolt Hole Centres:: 99mm

Technical

d	25mm
H	130mm
U	36.8mm
A	29.1mm
A1	13.5mm
A2	17mm
B	34.1mm
J	99mm
L	70mm
N	11mm
Q	1/4 - 28 UNF
V	70mm
Mass	0.33 kg
Basic dynamic load rating Cr	13400 N
Basic static load rating Cor	7500 N
Load carrying capacity of housing Cor G	11100 N
Designation of housing	GEH.CJT05-TV
Designation of bearing	GYE25-KRR-B-FA107-VA
Bearing end cap, closed design (supplied with end cap)	KASK05-S-G
Bearing end cap, open design, with integral rotary shaft seal (available by agreement)	KASK05-S-R-NBR
