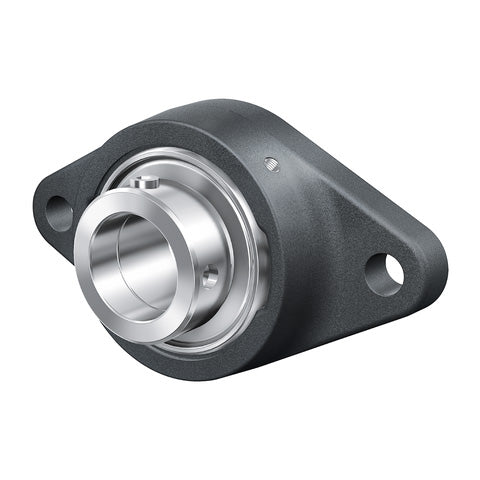

• INA RCJTY30-TV-VA Two Bolt Plastic Oval Housing with Grub Screw Insert Corrosion-Resistant Design 30mm Bore
  • INA
1 2

SKU: RCJTY30-TV-VA-INA

INA RCJTY30-TV-VA Two Bolt Plastic Oval Housing with Grub Screw Insert Corrosion-Resistant Design 30mm Bore

INA RCJTY30-TV-VA Two Bolt Plastic Oval Housing with Grub Screw Insert Corrosion-Resistant Design 30mm Bore
$164.55 ex VAT
$164.55 ex VAT
Sale Sold out

In stock

Price Break
4+ $110.22
9+ $104.03
19+ $102.79
29+ $101.55
39+ $100.31
49+ $99.07
59+ $92.88
69+ $91.64
79+ $90.40
89+ $89.16
99+ $86.69

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
INA - High Quality
Inside Diameter:
30mm
Style:
RCJTY
Bolt Hole Centres:
117mm
Technical
d 30mm
H 148mm
U 41.2mm
A 30.6mm
A1 13.3mm
A2 19mm
B 38.1mm
J 117mm
L 80mm
N 11mm
Q 1/4 - 28 UNF
V 80mm
Mass 0.47 kg
Basic dynamic load rating Cr 18700 N
Basic static load rating Cor 10700 N
Load carrying capacity of housing Cor G 14200 N
Designation of housing GEH.CJT06-TV
Designation of bearing GYE30-KRR-B-FA107-VA
Bearing end cap, closed design (supplied with end cap) KASK06-S-G
Bearing end cap, open design, with integral rotary shaft seal (available by agreement) KASK06-S-R-NBR
